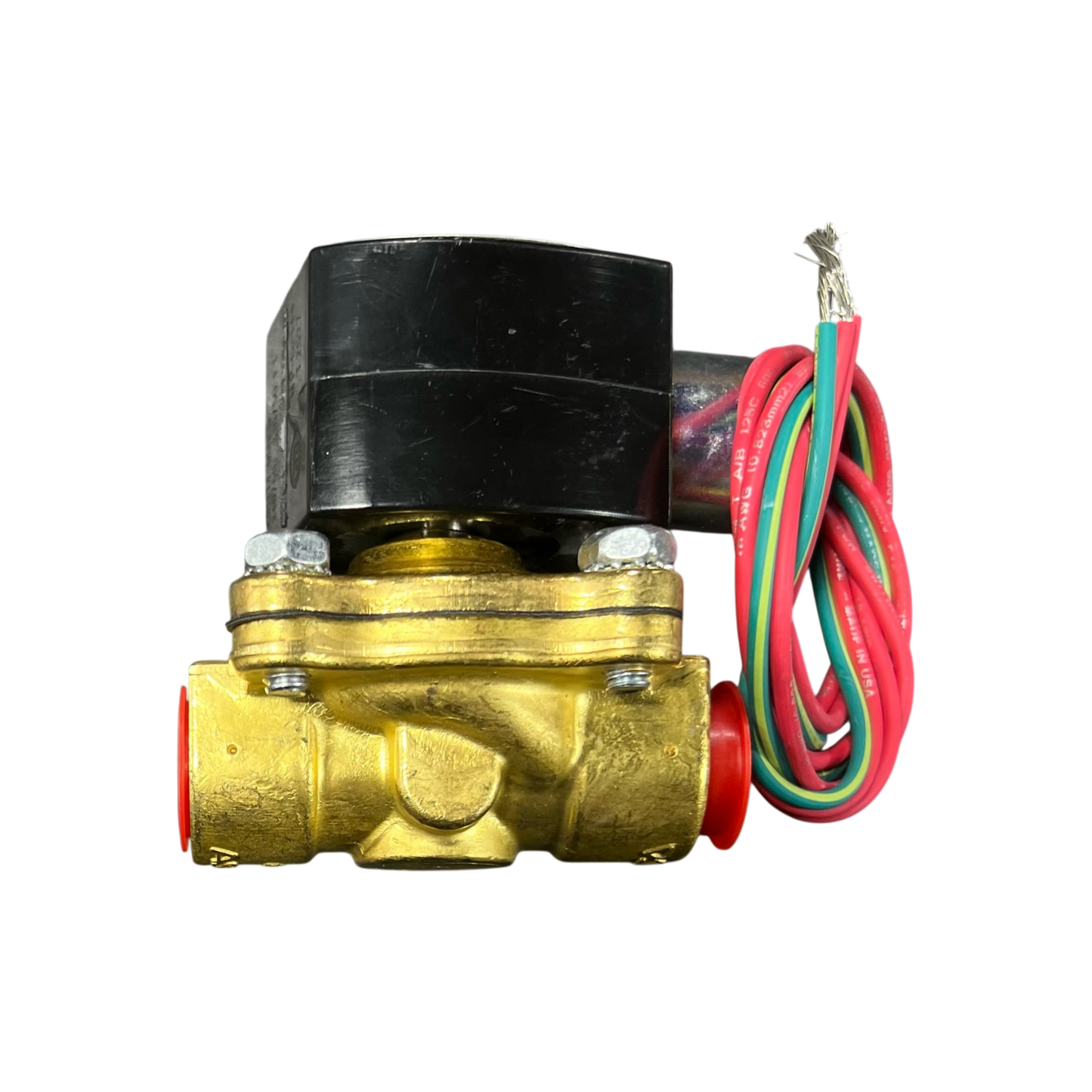

VS-3/8 Solenoid Valve, Explosion Proof, 3/8"
VS-3/8 Solenoid Valve, Explosion Proof, 3/8"
Regular price
$290.00 USD
Regular price
Sale price
$290.00 USD
Couldn't load pickup availability
This normally closed solenoid valve is ideal for industrial and marine use, and is specifically selected for use with certain Kahlenberg Horns based on air flow requirements.
- Brass Valve Body
- UL and CSA Certified for use in hazardous locations
- Tested for air flow requirements of Kahlenberg Horns
- Available in additional AC and DC Voltages as required
- Can be installed in any vertical or horizontal orientation
Lead Time: 1 Week
Technical Specifications
Technical Specifications
Size: 3/8'' Female NPT
Function: Normally closed, 120VAC/60Hz, 110VAC/50Hz explosion proof watertight coil
Maximum operating air pressure: 200 PSI (14 bar)
Power Consumption: 6.1 Watts on 60 Hz, 16 VA holding, 40 VA inrush
Material: body - brass, elastomer - Buna N
UL and CSA certified for use in hazardous locations: Class 1, Div 1 group A,B,C and D. Class 2 Div 1 group E, F & G
Enclosure: Nema 3, 3S, 4, 4X, 6, 6P, 7 & 9
Other: CE Certified
