V-152 Solenoid Valve, 3/4"
V-152 Solenoid Valve, 3/4"
Couldn't load pickup availability

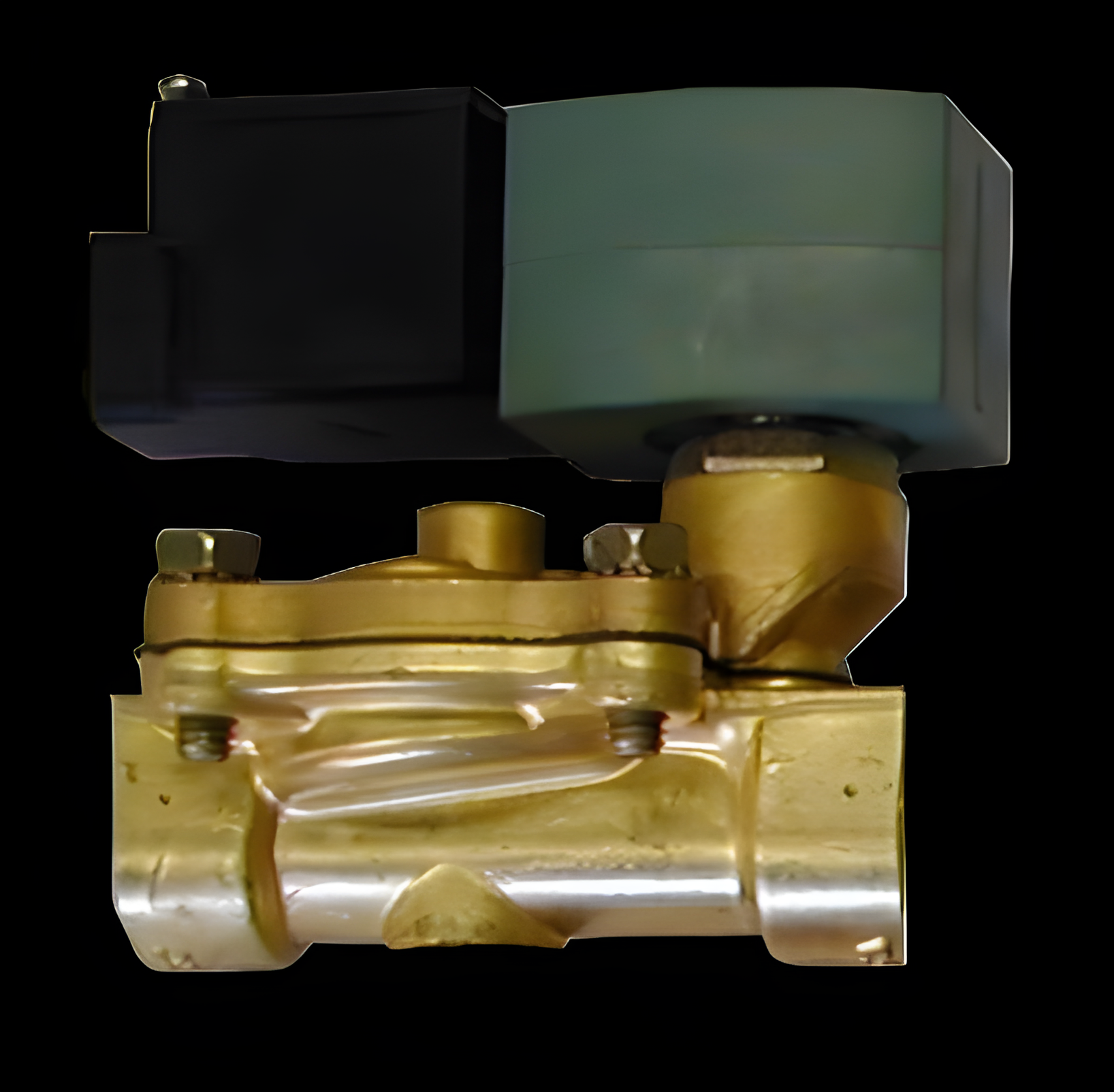

This normally closed solenoid valve kit is ideal for industrial and marine use, and is specifically selected for use with certain Kahlenberg Horns based on air flow requirements.
- Brass Valve Body
- Tested for air flow requirements of Kahlenberg Horns
- Available in additional AC and DC Voltages as required
- Can be installed in any vertical or horizontal orientation
Lead Time: 1 Week
Technical Specifications
Technical Specifications
Size: 3/4'' Female NPT
Function: Normally closed
Voltage: 110-240 VAC and 12 or 24 Volts D.C. Versions available
Maximum operating air pressure: 200 PSI (14 bar) for A.C. Versions, 125 PSI (9 bar) for D.C. Versions
Power Consumption: 6.1 Watts on 60 Hz A.C., 18.6 watts D.C.
Material: body - brass, elastomer - Buna N
Other: CE Certified
