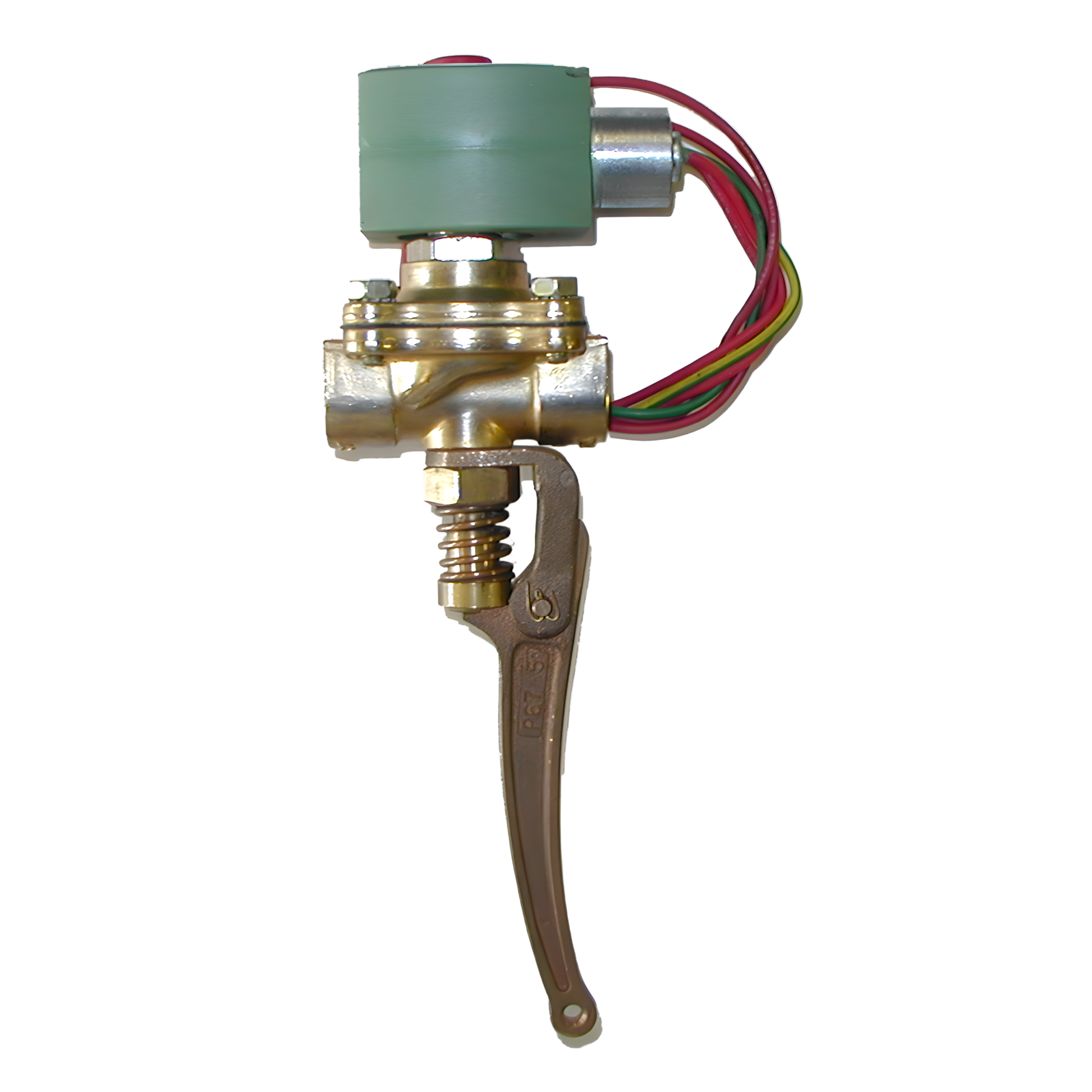

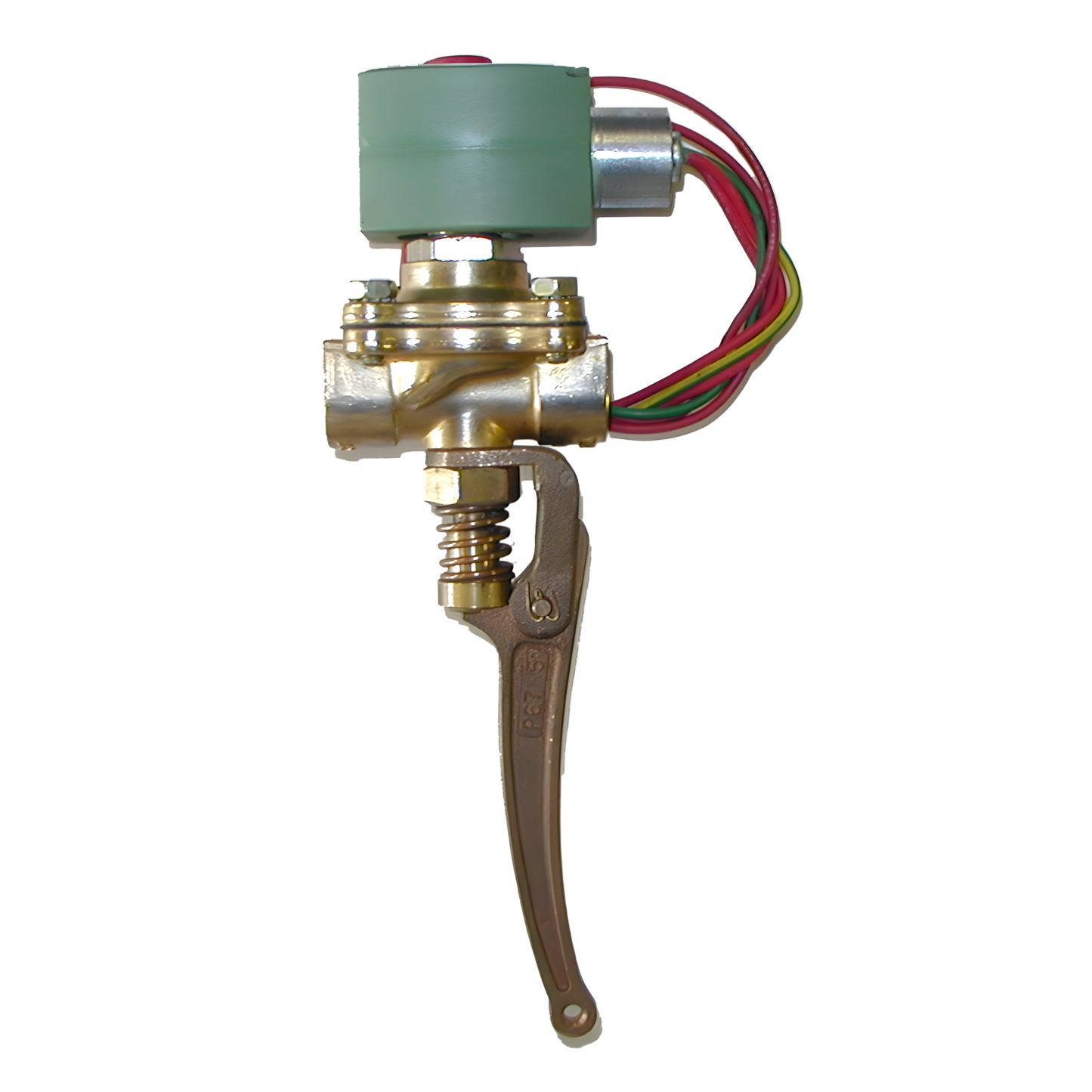

V-150AL Electric/Manual 3/8" Combination Valve
V-150AL Electric/Manual 3/8" Combination Valve
Couldn't load pickup availability
This normally closed combination manual/electric solenoid valve is ideal for marine use, and is specifically selected for use with certain Kahlenberg Horns based on air flow requirements. The manual lever is included as a safety backup to operate the valve in case of electrical failure.
- Brass Valve Body
- Tested for air flow requirements of Kahlenberg Horns
- Available in additional AC and DC Voltages as required
- Can be installed in any vertical or horizontal orientation
- Includes manual override for safety in case of electrical failure onboard
Lead Time: 1 Week
Technical Specifications
Technical Specifications
Size: 3/8'' Female NPT
Function: Normally closed
Voltage: 110-240 VAC and 12 or 24 Volts D.C. Versions available
Maximum operating air pressure: 200 PSI (14 bar) for A.C. Versions, 125 PSI (9 bar) for D.C. Versions
Power Consumption: 6.1 Watts on 60 Hz A.C., 18.6 watts D.C.
Material: body - brass, elastomer - Buna N
Other: CE Certified
