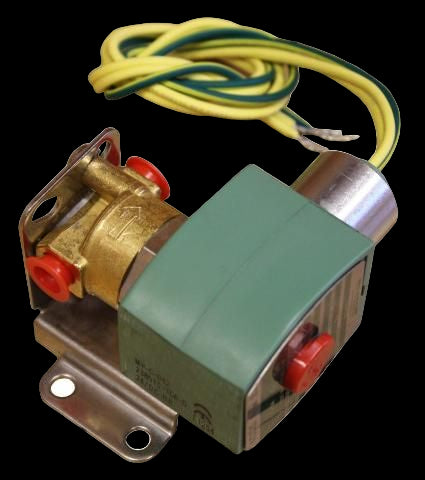

V-149-K Solenoid Valve Kit, 1/8"
V-149-K Solenoid Valve Kit, 1/8"
Couldn't load pickup availability
This normally closed solenoid valve kit is ideal for marine use, and is specifically selected for use with certain Kahlenberg Horns based on air flow requirements. Additional tubing and fittings are included for easy installation.
- Brass Valve Body
- Tested for air flow requirements of Kahlenberg Horns
- Available in additional AC and DC Voltages as required
- Can be installed in any vertical or horizontal orientation
Lead Time: 1 Week
Technical Specifications
Technical Specifications
Size: 1/8'' Female NPT
Function: Normally closed
Voltage: 110-240 VAC and 12 or 24 Volts D.C. Versions available
Maximum operating air pressure: 165 PSI (11.3 bar)
Power Consumption: 6.1 Watts on 60 Hz A.C., 18.6 watts D.C.
Material: body - brass, elastomer - Buna N
Other: CE Certified
