T-4A Chimetone Air Horn
T-4A Chimetone Air Horn
Couldn't load pickup availability

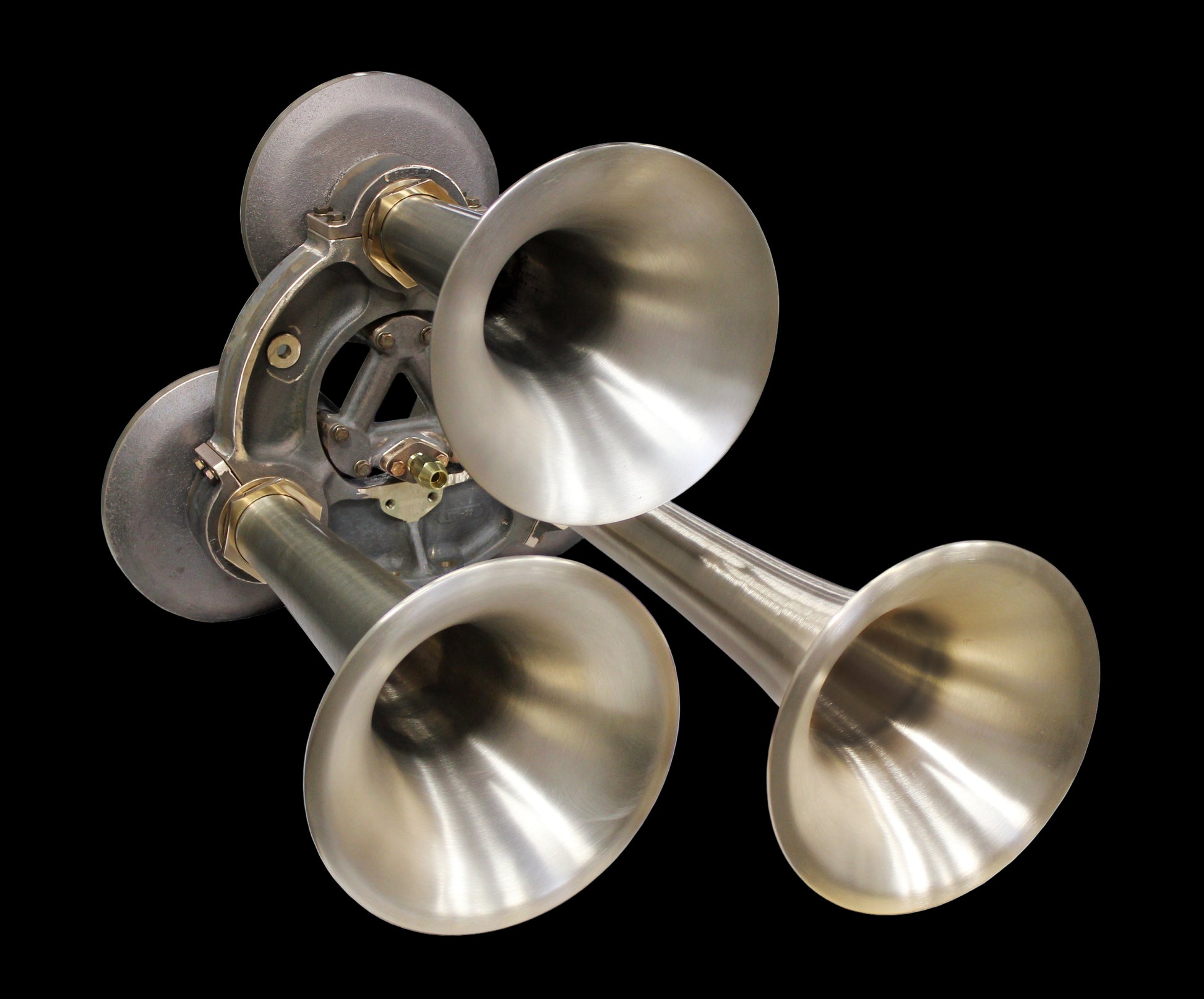

Kahlenberg Chimetone Air Horns all utilize more than one projector or “trumpet” in their design. These projectors each produce a different fundamental frequency which combine to produce powerful, distinctive, musical chords. To hear a Chimetone Air Horn is to realize that the sound of a vessel can be one of its most impressive aspects. The Model T-4A Air Horn is made entirely of bronze and brass.
- For vessels 75 to 200 Meters in length
- Meets or exceeds IMO Requirements
- Operates on a wide range of air pressure
- Highly reliable, virtually no maintenance required
- All brass and bronze construction
Lead Time: As Quoted
Technical Specifications
Technical Specifications
Fundamental Frequency: 134, 171, 220 Hz
S.P.L. (1/3 Octave, 1 Meter): 141 dB(A)
Air Consumption: 192 C.F.M. @ 150psi., 91 I/s @ 10 bar
Air Pressure Required: 100 to 250psi, 7 to 17 bar (Higher pressures with Optional regulators)
Electrical Power Required: Any standard A.C. or D.C voltage
Material: Cast Bronze & Naval Brass
Net Weight: 185 lbs., 84 kg.
Finishes: Cast Bronze and Naval Brass
Dimensions: 30” x 24” x 22” (940x613x568)
