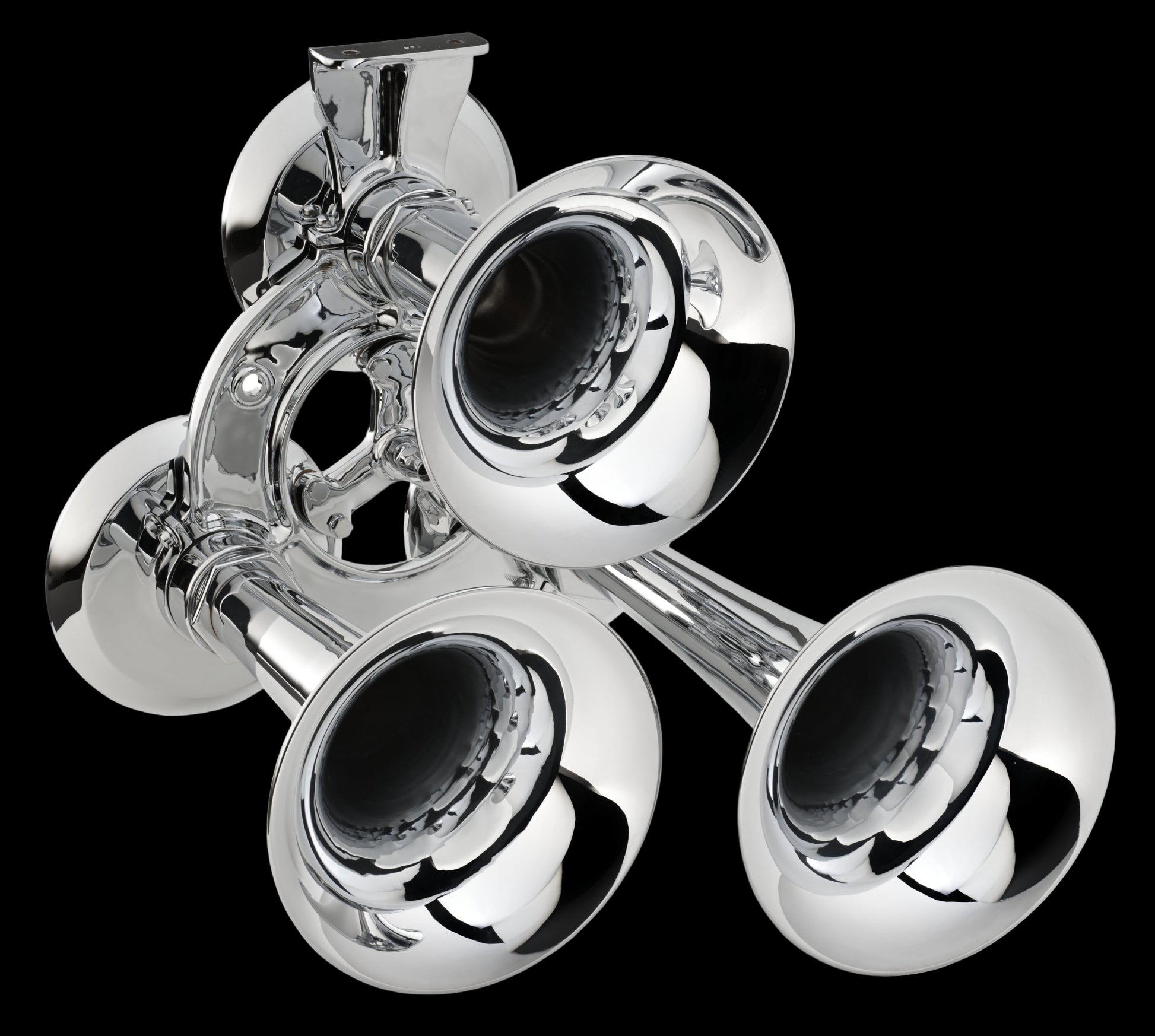

T-3A Chrome Chimetone Air Horn
T-3A Chrome Chimetone Air Horn
Couldn't load pickup availability
Kahlenberg Chimetone Air Horns all utilize more than one projector or “trumpet” in their design. These projectors each produce a different fundamental frequency which combine to produce powerful, distinctive, musical chords. To hear a Chimetone Air Horn is to realize that the sound of a vessel can be one of its most impressive aspects. The Model T-3A Air Horn is designed for the most discriminating yachtsman. It is made entirely of bronze and brass, and is triple plated for a deep chrome finish.
- For vessels less than 75 Meters in length
- Meets or exceeds IMO Requirements
- Low Air Consumption, operates on a wide range of air pressure
- Highly reliable, virtually no maintenance required
- All brass and bronze construction
Lead Time: As Quoted
Technical Specifications
Technical Specifications
Fundamental Frequency: 311, 261, 208 Hz
S.P.L. (1/3 Octave, 1 Meter): 135 dB
Air Consumption: 52 C.F.M. @ 100psi., 25 I/s @ 7 bar
Air Pressure Required: 100 to 200psi, 7 to 17 bar (Higher pressures with Optional regulators)
Electrical Power Required: Any standard A.C. or D.C voltage
Material: Cast Bronze & Spun Brass
Net Weight: 75 lbs., 34 kg.
Finishes: Kahlenberg Chrome Plate, TGIC Sky White Powdercoat, Other Finished Available
Dimensions: 21.25” x 18.5” x 19” (540x470x483)
