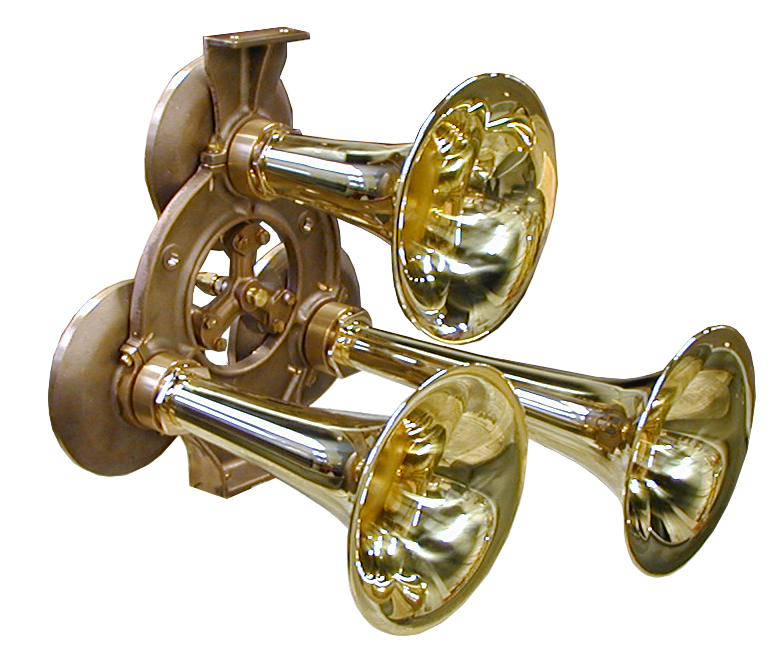

T-3A Arena Air Horn
T-3A Arena Air Horn
Couldn't load pickup availability
Originally designed for use on marine vessels up to 250 feet long, the Model T-3A Air Horn is an impressive unit. Providing a sound pressure level of over 138 dB @ 1 Meter, the T-3A combines three tones for optimum effect. A complete system can be designed for use with the T-3A Air Horn including compressor kits and controls.
- Highly reliable, no maintenance
- Low air consumption, operates on a wide range of air pressure
- Available as a uni-directional assembly only
- For use as a powerful scoring signal inside smaller arenas or ice centers
Lead Time: As Quoted
Technical Specifications
Technical Specifications
Fundamental Frequency: 311, 261, 208 Hz
S.P.L. (1/3 Octave, 1 Meter): 135 dB
Air Consumption: 52 C.F.M. @ 100psi., 25 I/s @ 7 bar
Air Pressure Required: 100 to 200psi, 7 to 17 bar (Higher pressures with Optional regulators)
Electrical Power Required: Any standard A.C. or D.C voltage
Material: Cast Bronze & Spun Brass
Net Weight: 75 lbs., 34 kg.
Finishes: Kahlenberg Chrome Plate, TGIC Sky White Powdercoat, Other Finished Available
Dimensions: 21.25” x 18.5” x 19” (540x470x483)
