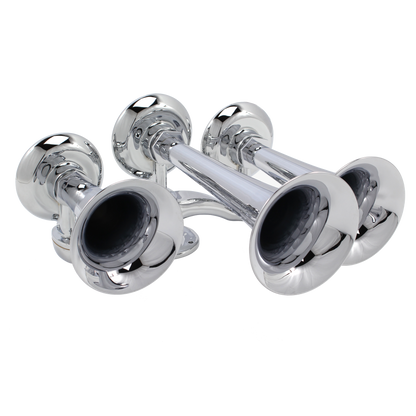

T-2 Chrome Chimetone Air Horn
T-2 Chrome Chimetone Air Horn
Couldn't load pickup availability
Kahlenberg Chimetone Air Horns all utilize more than one projector or “trumpet” in their design. These projectors each produce a different fundamental frequency which combine to produce powerful, distinctive, musical chords. To hear a Chimetone Air Horn is to realize that the sound of a vessel can be one of its most impressive aspects. The Model T-2 Air Horn is designed for the most discriminating yachtsman. It is made entirely of bronze and brass, and is triple plated for a deep chrome finish.
- For vessels less than 75 Meters in length
- Meets or exceeds IMO Requirements
- Low Air Consumption, operates on a wide range of air pressure
- Highly reliable, virtually no maintenance required
- All brass and bronze construction
Lead Time: As Quoted
Technical Specifications
Technical Specifications
Fundamental Frequency: 212, 265, 349 Hz
SPL Output: 131 dB (1/3 Octave Band)
Air Consumption: 42 CFM @ 100 psi, 20 l/s @ 7 bar
Air Pressure Required: 100 to 250 psi, 7 to 17 bar
Electrical Specifications: Any Standard AC or DC Voltage
Material: Cast Bronze and Spun Brass
Net Weight: 54 lbs (24.5 kg)
Dimensions: 22.25 x 22.5 x 12" (565 x 569 x 306 mm)
Finish: Kahlenberg Chrome Plate (TGIC "Sky White" Powdercoat, or Custom Colors Available)
