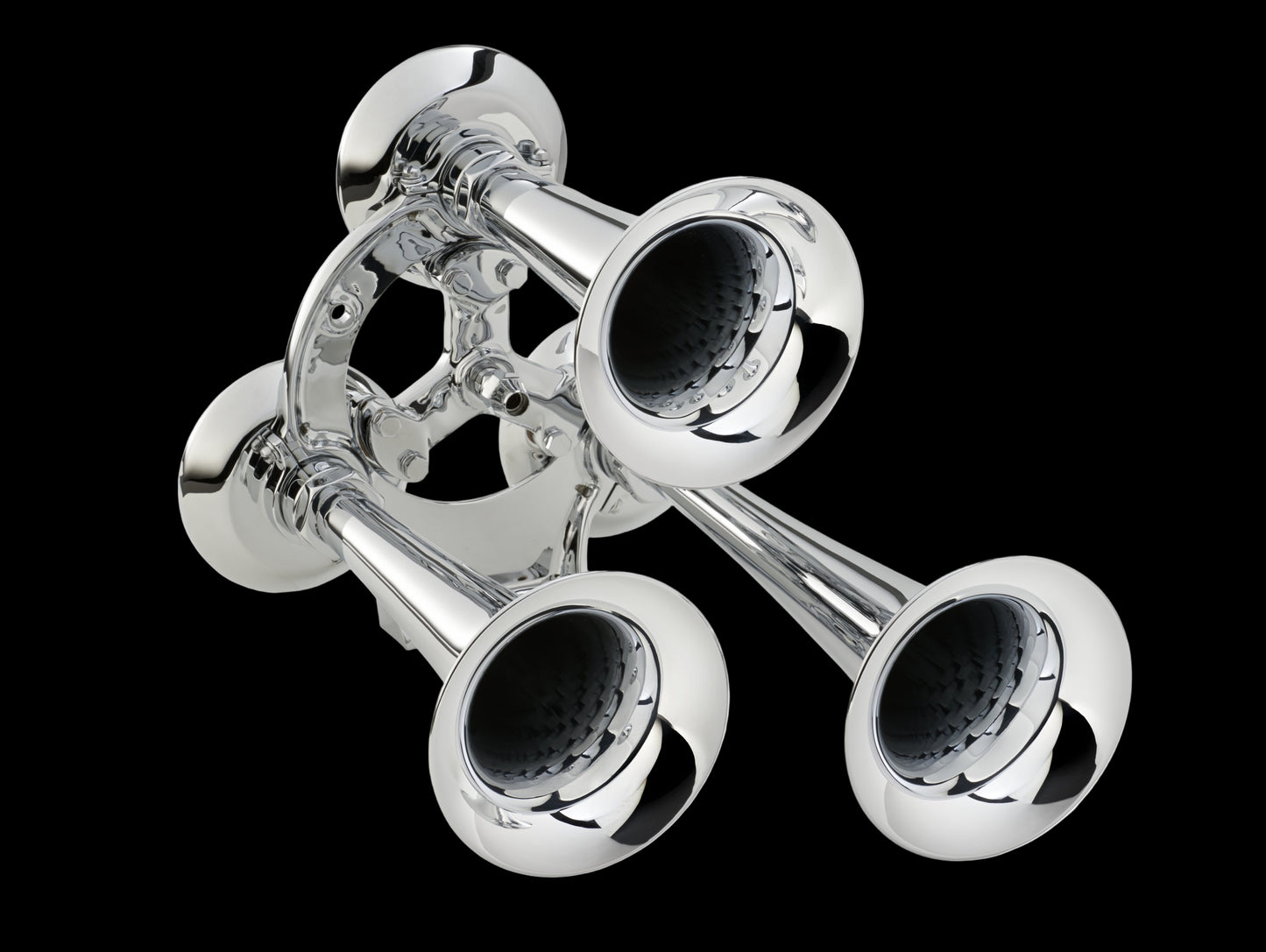

T-1 Chrome Chimetone Air Horn

T-1 Chrome Chimetone Air Horn

Finish

Kahlenberg Chimetone Air Horns all utilize more than one projector or “trumpet” in their design. These projectors each produce a different fundamental frequency which combine to produce powerful, distinctive, musical chords. To hear a Chimetone Air Horn is to realize that the sound of a vessel can be one of its most impressive aspects. The Model T-1 Air Horn is designed for the most discriminating yachtsman. It is made entirely of bronze and brass, and is triple plated for a deep chrome finish.

  • For vessels less than 75 Meters in length
  • Meets or exceeds IMO Requirements
  • Low Air Consumption, operates on a wide range of air pressure
  • Highly reliable, virtually no maintenance required
  • All brass and bronze construction

Lead Time: As Quoted

Technical Specifications

Fundamental Frequency: 375, 322, 252 Hz
S.P.L. (1/3 Octave, 1 Meter): 132 dB
Air Consumption: 35 C.F.M. @ 100psi., 17 I/s @ 7 bar
Air Pressure Required: 100 to 250psi, 7 to 17 bar (Higher pressures with Optional regulators)
Electrical Power Required: Any standard A.C. or D.C voltage
Material: Cast Bronze & Spun Brass
Net Weight: 23 lbs., 10 kg.
Finishes: Kahlenberg Chrome Plate, TGIC Sky White Powdercoat, Other Finishes Available
Dimensions: 18.5” x 13.75” x 13” (470x349x330)

Click Here for Technical PDF
