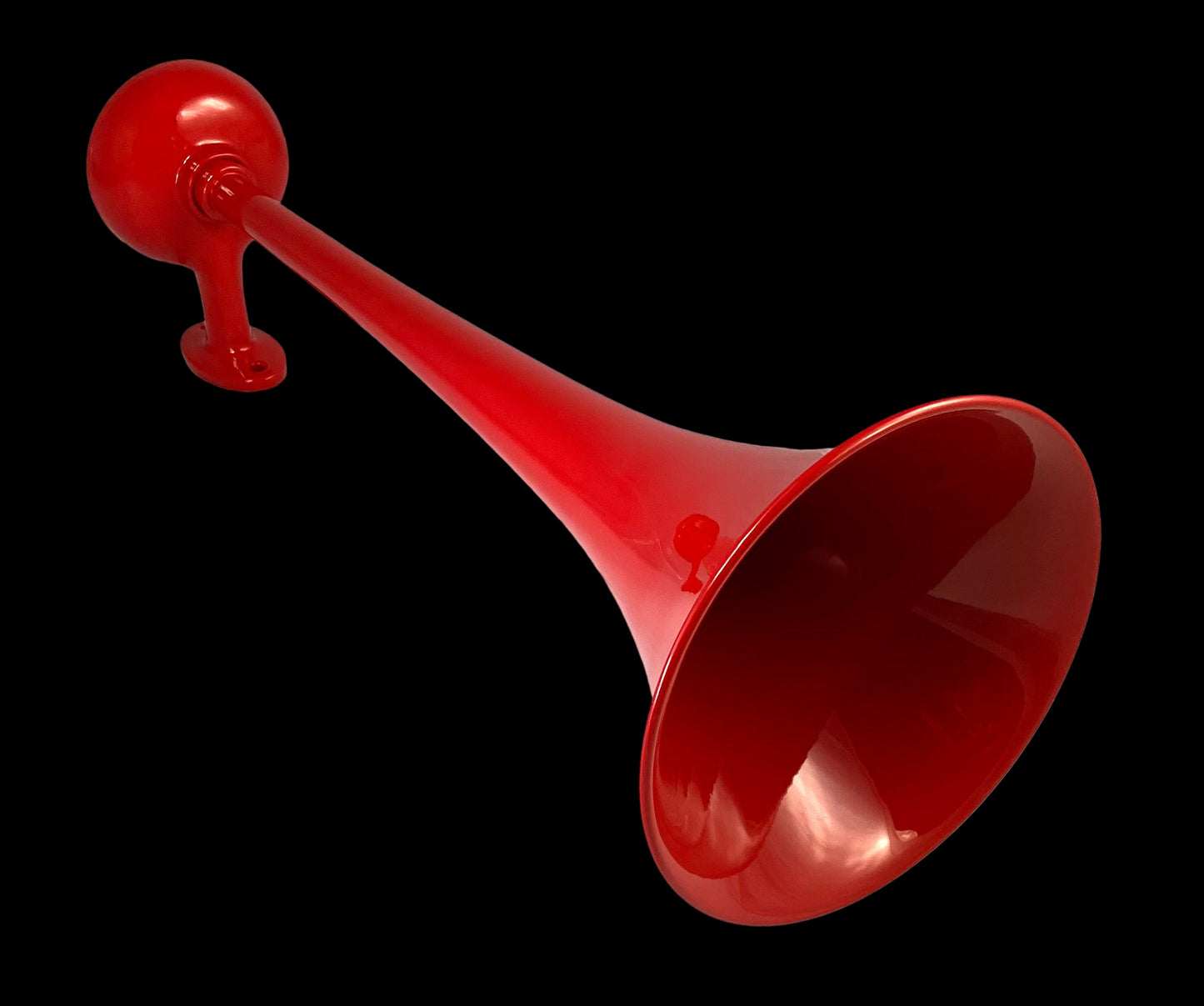

S-330-X Industrial Air Horn

S-330-X Industrial Air Horn

Regular price $494.00 USD
Regular price Sale price $494.00 USD
Sale Sold out
Finish

The Kahlenberg Model S-330-X Industrial Horn is designed for maximum dB output at a minimum of air consumption, physical size, and weight. It is simply constructed and extremely reliable resulting in a very low cost of use as compared to more complicated means of sound production.

  • Ideal for outdoor Industrial applications
  • Single tone, 330 Hz fundamental frequency, engineered to produce full harmonic contents up to 12 octaves which greatly enhance warning effectiveness
  • Horn is energy efficient with hermetically sealed diaphragm assembly which operates on a wide range of pressure without tuning or adjustment
  • Horn construction: Brass horn construction, titanium diaphragm disc and stainless steel fasteners

Lead Time: 1 Week

Technical Specifications

Fundamental Frequency: 330 ± 2 Hz
S.P.L. (dB(A) @ 1 Meter): 140 dB
Operating Medium: Air, Nitrogen, CO2, 1/8” NPT inlet Control Manual, Solenoid or Combination Valve
Air Consumption: 4.95 L/sec [10 SCFM] @ 7 bar [100psi]
Operating Temperature: -20°C to 80°C [-4°F to 176°F]
Finish: Primed & Painted Safety Red
Net Weight: 7 lbs., 3.2 kg.
Degree of Protection: IP54
Dimensions: 18.7” x 6.8” x 6.5” (474x172x164mm)

Click Here for Technical PDF
