S-260-ENC Heated Air Horn
S-260-ENC Heated Air Horn
Couldn't load pickup availability

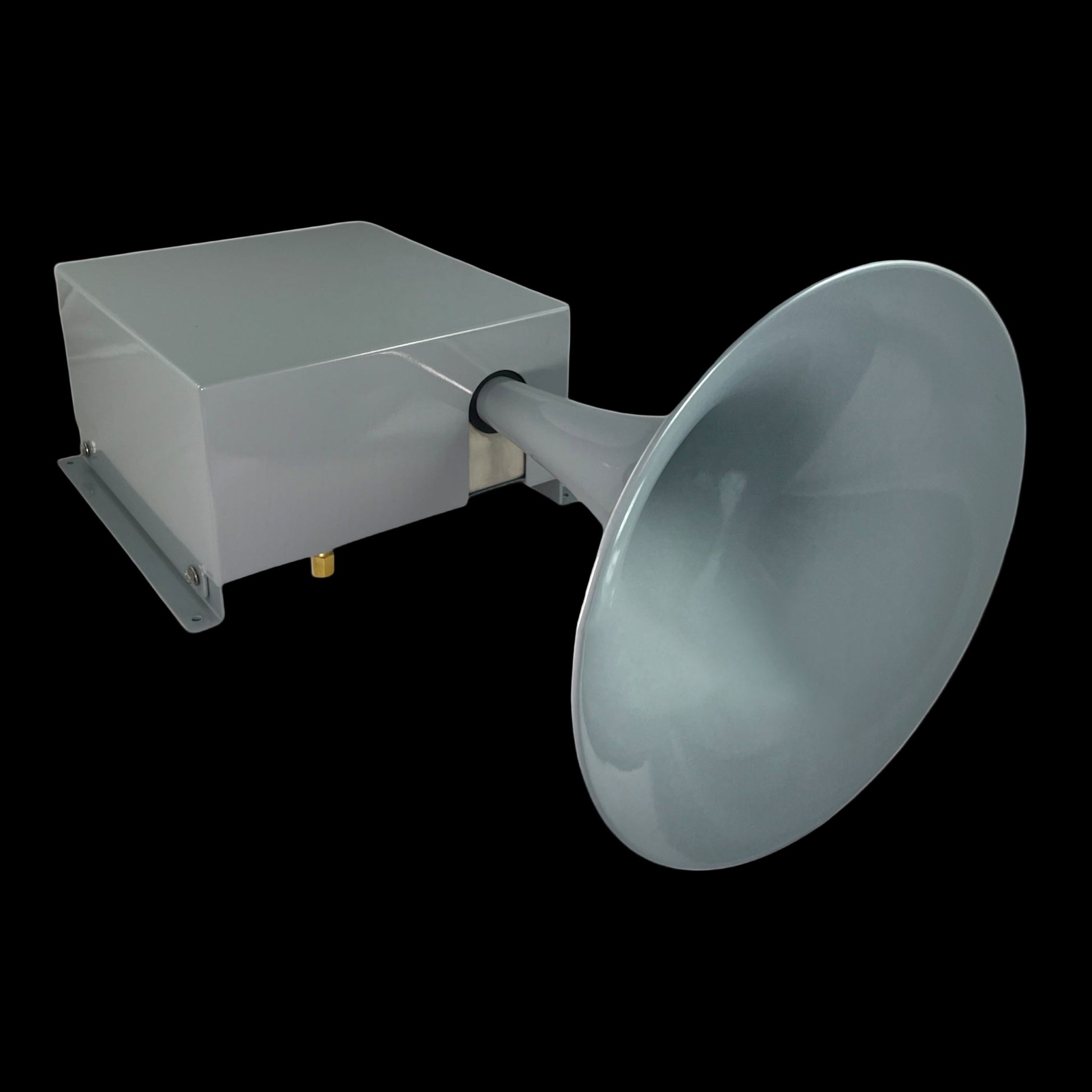

The Kahlenberg S-260-ENC Heated Air Horn provides a fully IMO compliant sound signal for commercial marine applications in an economic and compact package suitable for use on vessels 75 to 200 meters in length. The horn’s heated, thermostatically controlled aluminum housing reduces weight, cost, and installation, while maintaining all-metal durability and extreme weather operation.
- Constructed of brass, (NOT PLASTIC) with titanium diaphragm, and stainless steel fasteners to withstand the harsh marine environment
- Heated combination manual override and dual electric solenoid operating valve for redundancy providing safety of vessel and crew
- Heater is water tight and thermostatically controlled
- Horn assembly is lightweight and easily installed.
Lead Time: As Quoted
Technical Specifications
Technical Specifications
Fundamental Frequency: 265 Hz
S.P.L. (dB(A)): 148 dB
Air Consumption: 21 C.F.M. @ 100psi, 9.8 L/s @ 7 bars
Air Pressure Required: 75 to 150psi, 5.2 to 10 bar (Higher pressures with Optional regulators)
Electrical Power Required: Control: 8W AC, 10W DC Heater: 150W AC
Material: Brass, Stainless Steel, Aluminum Bracket
Net Weight: 11.3 kg (25 lbs.)
Finish: TGIC Gray Powdercoat
Degree of Protection: IP56
Dimensions: 20.3” x 14” x 6.5” (515.8x355.6x165.1mm)
