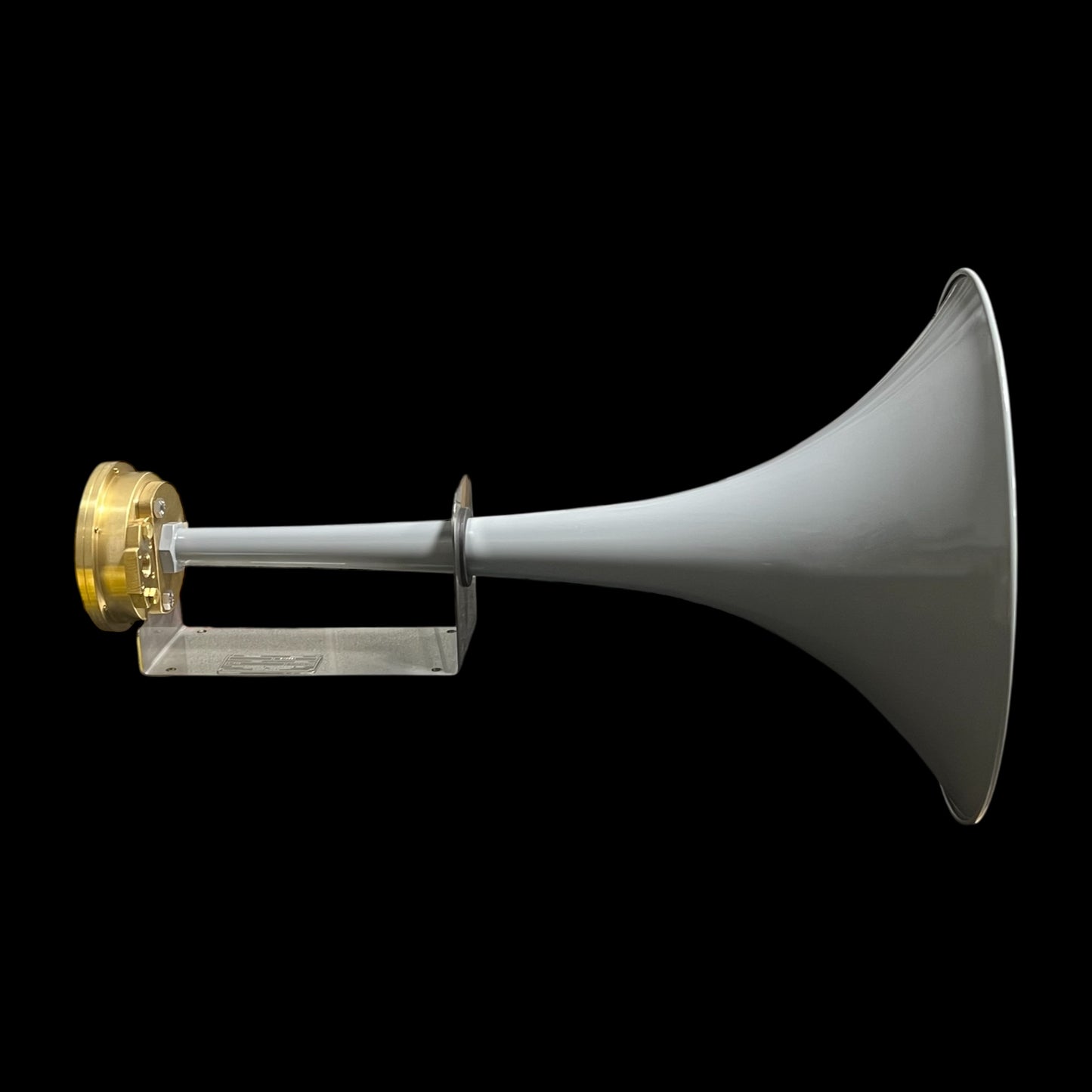

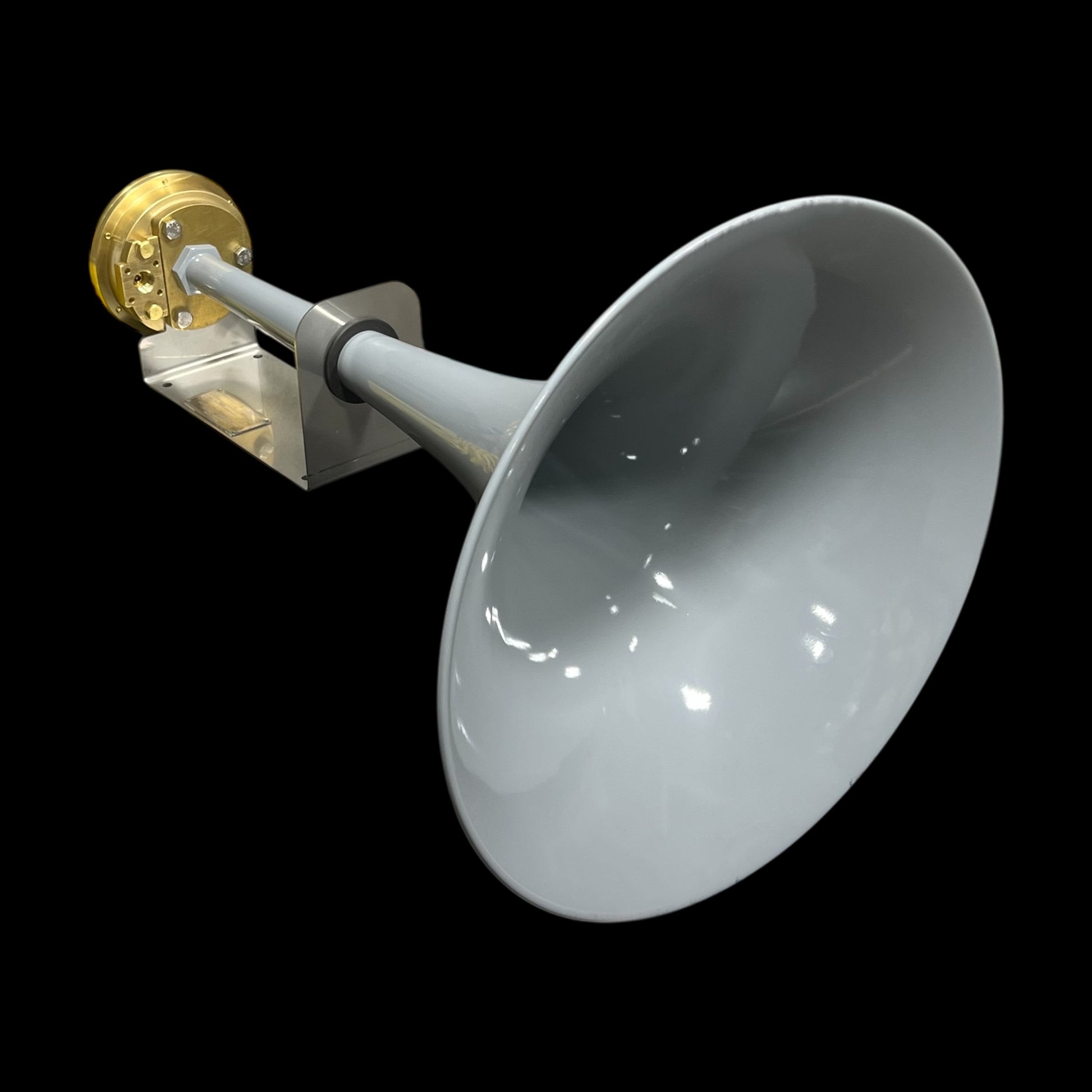

S-260 Air Horn

The Kahlenberg S-260 Heated Air Horn provides a fully IMO compliant sound signal for commercial marine applications suitable for use on vessels 75 to 200 meters in length.

Constructed of brass, (NOT PLASTIC) with titanium diaphragm, and stainless steel fasteners to withstand the harsh marine environment
Horn assembly is lightweight and easily installed.

Click to Hear Pause

Technical Specifications

Frequency: 265 Hz
Sound Pressure Level (dB(A)@ 1 meter): 148.0 dB Sound Pressure Level (1/3 octave at 1 meter): >138.0 dB
Air Consumption: 21 C.F.M.@ 100 P.S.I.
Air Pressure Req: 75 to 150 P.S.I. [5.2 to 10 bar]
Material: Brass, Stainless Steel
Operating Ambient Temp. :-4°C to +80°C (24°F to +176°F] Net Weight: 11 Lbs. (5 Kg]
