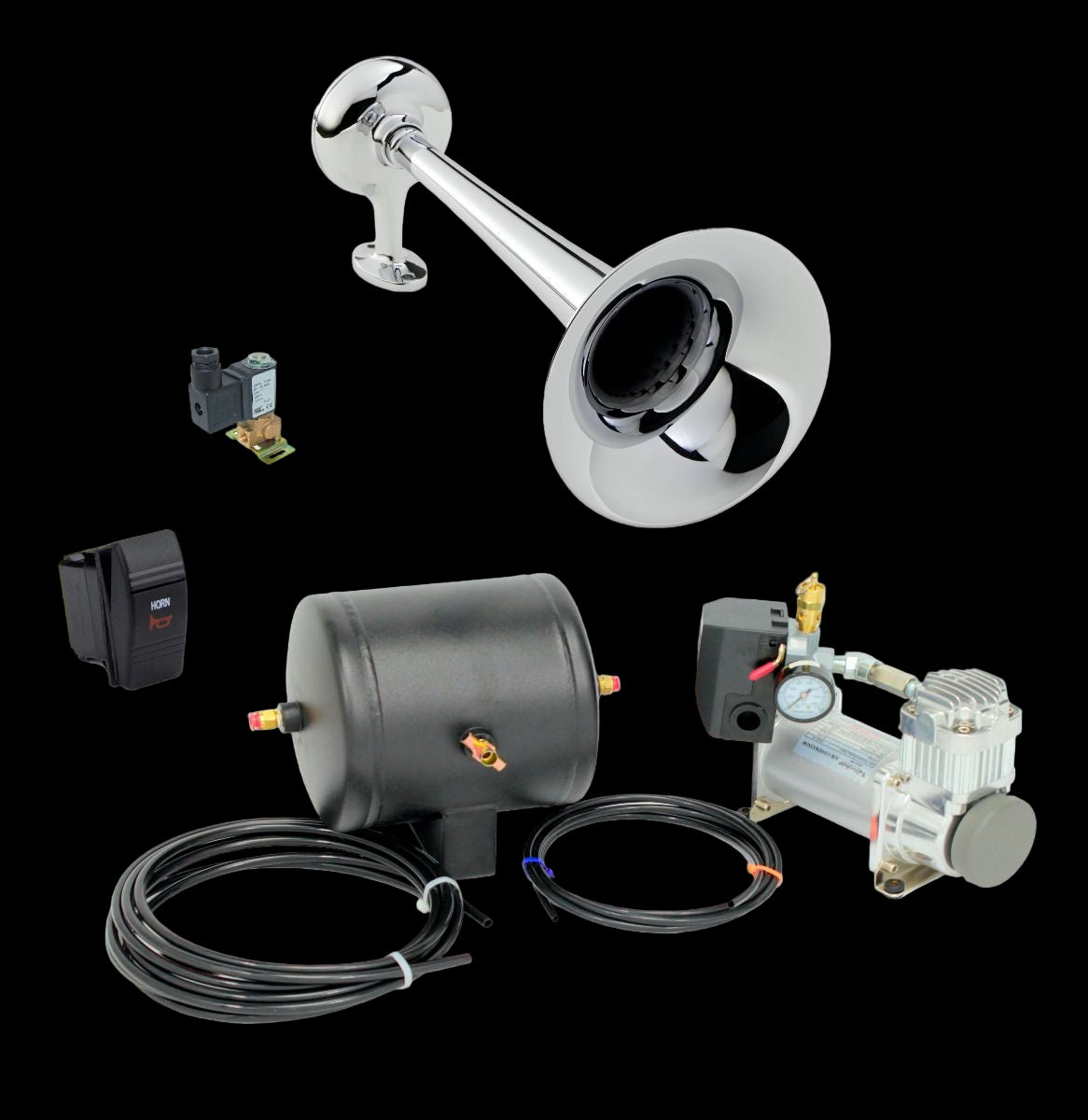

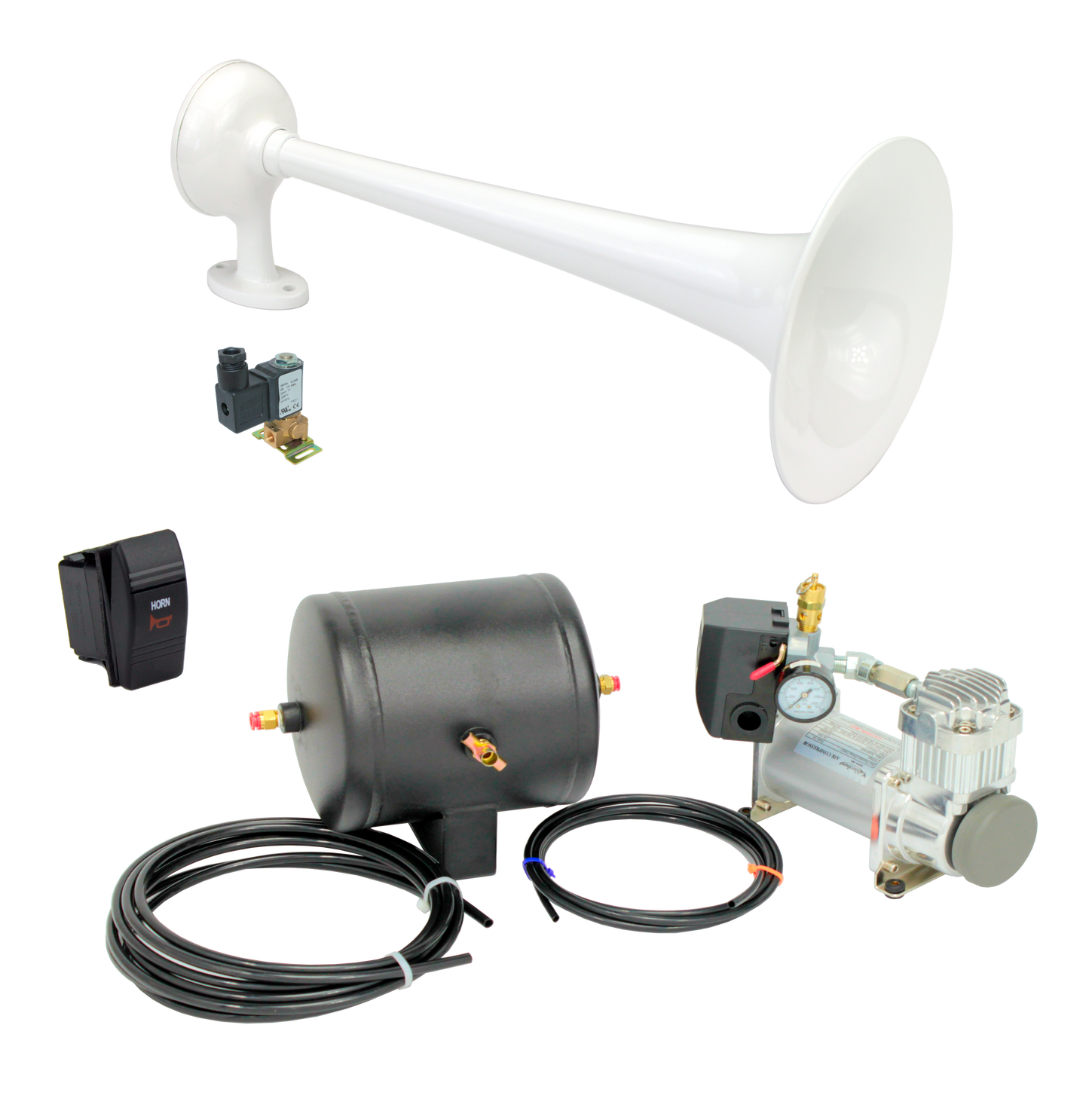

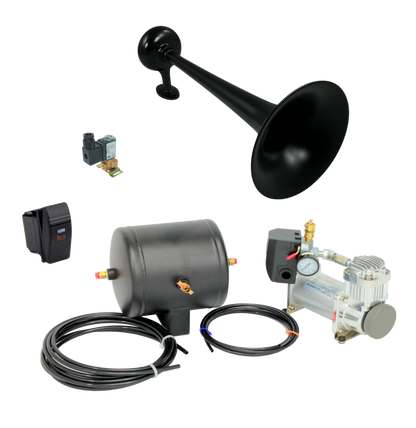

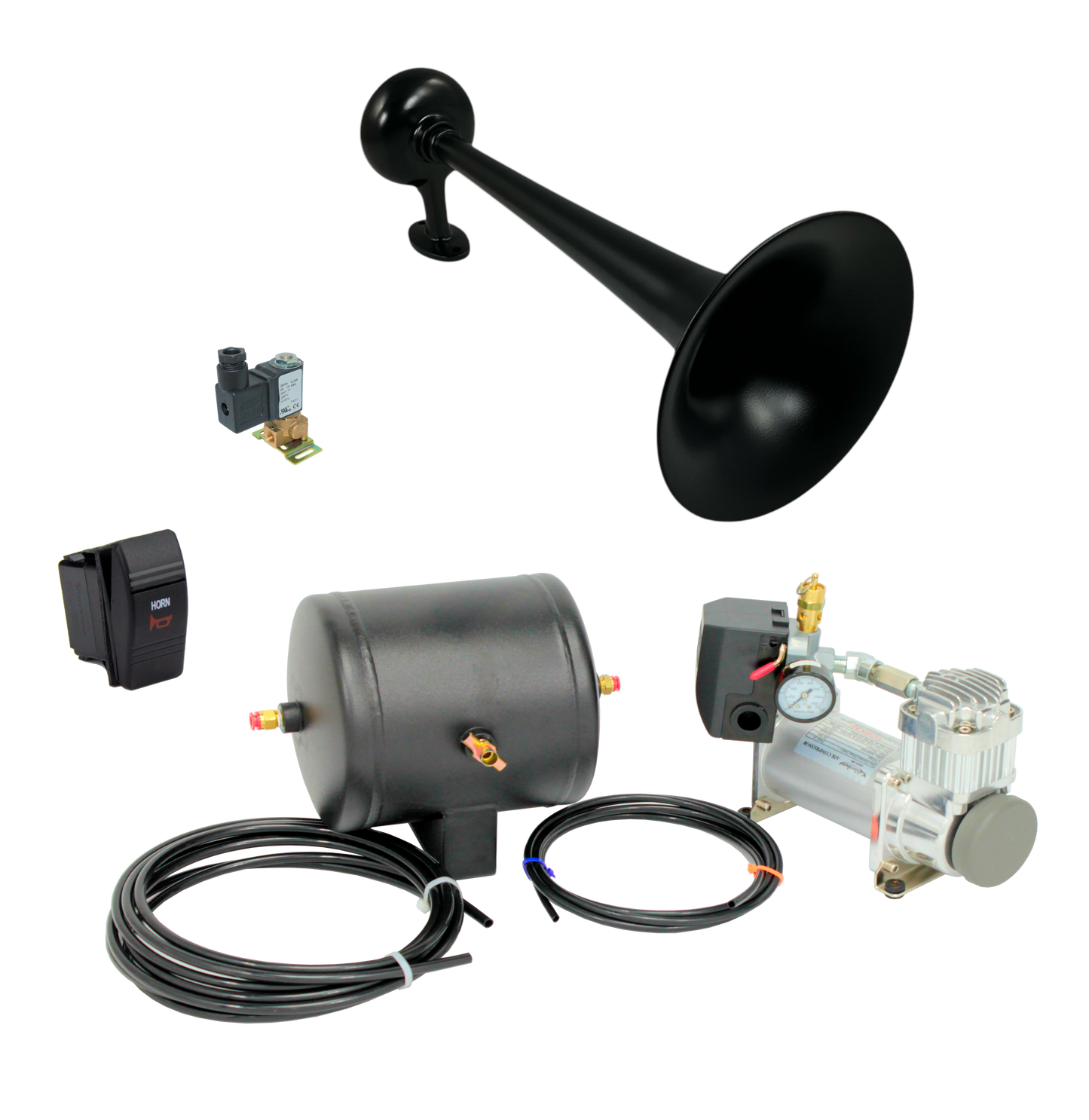

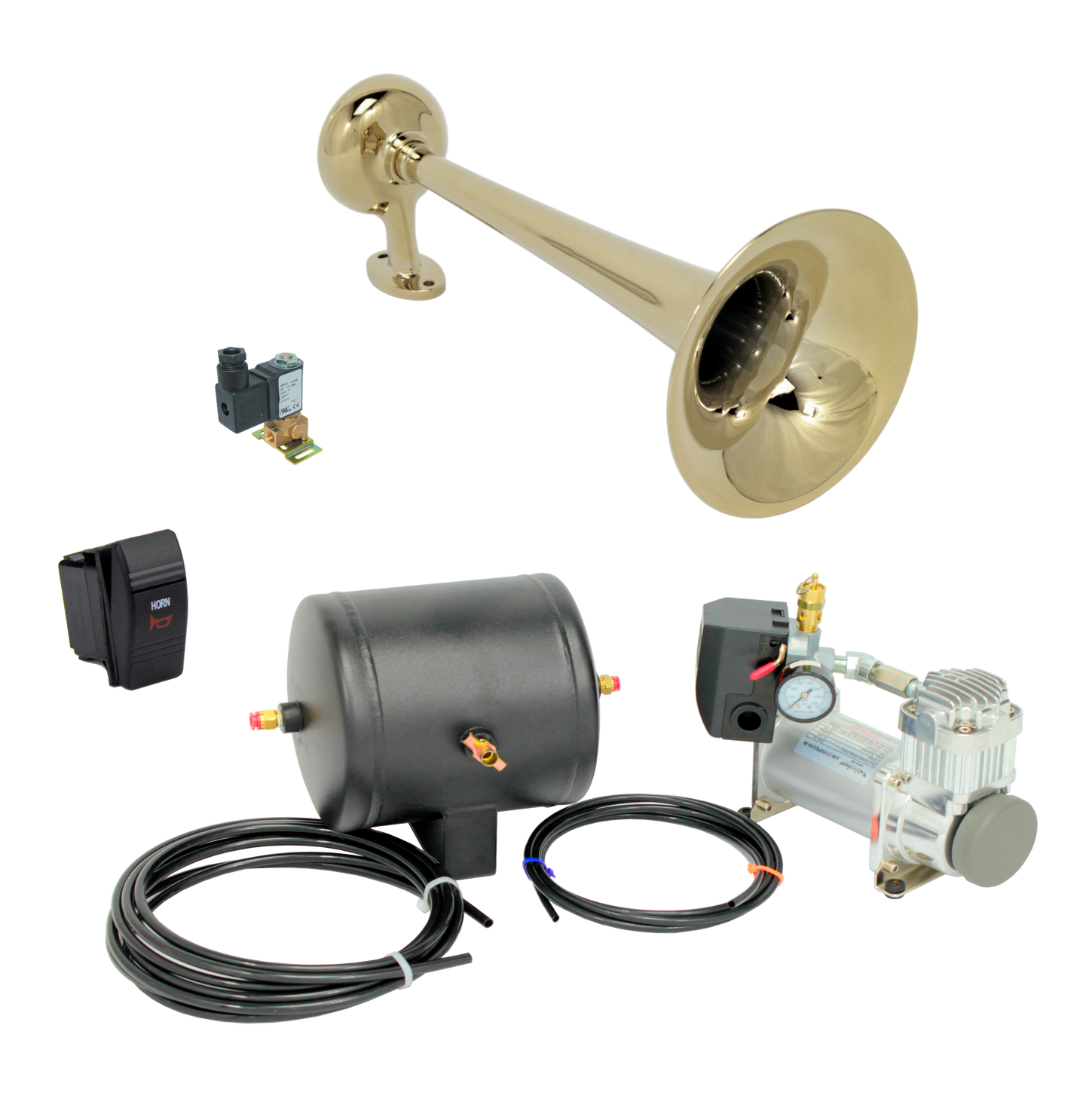

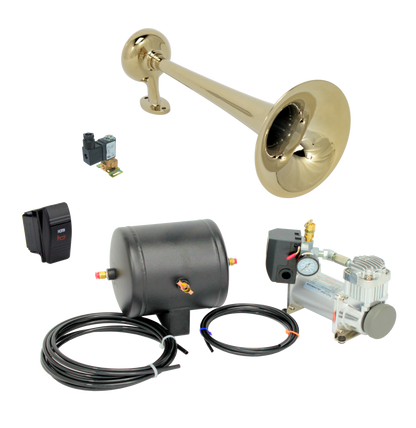

The Kahlenberg S-0A Marine Air Horn is IMO Certified for boats up to 65 feet (20 Meters) in length. As with all Kahlenberg Air Horns for pleasure craft, the S-0A has been developed to maximize audibility, with a richness of tone based on musical instrument design. Constructed entirely of bronze and brass it is built for a lifetime of service. This complete kit includes everything needed for a complete installation including the air horn, compressor kit, all tubing and quick connect fittings, solenoid valve and push button switch. Simply choose finish of the horn (chrome or white powdercoat) and the voltage required for your vessel (12 or 24 Volts DC).
- Output exceeds other horns of similar size
- Made entirely of brass with bronze diaphragm
- Low air consumption allows for use of a very small compressor/tank kit as compared to other air horns.
- Easy Installation with P449 Series Compressor Kits, V-69-K Valve Kits and M-126 Push Button
Lead Time: 3-4 Weeks
Technical Specifications
Technical Specifications
Fundamental Frequency: 322 Hz
S.P.L. (dB(A), 1 Meter): 131 dB
Air Consumption: 9 C.F.M., 4.2 l/s
Air Pressure Required: 50 to 200psi, 3.5 to 14 bar
Electrical Power Required: 12 or 24 Volt DC (Compressor)
Material: Bronze & Cast Brass
Net Weight: 4.75 lbs., 2.15 kg.
Finishes: Kahlenberg Chrome Plate, TGIC Sky White Powdercoat, Other Finishes Available
Dimensions: 15.3” x 6.9” x 5.2” (405x175x131mm)
