S-0A-Gray Air Horn
S-0A-Gray Air Horn
Couldn't load pickup availability

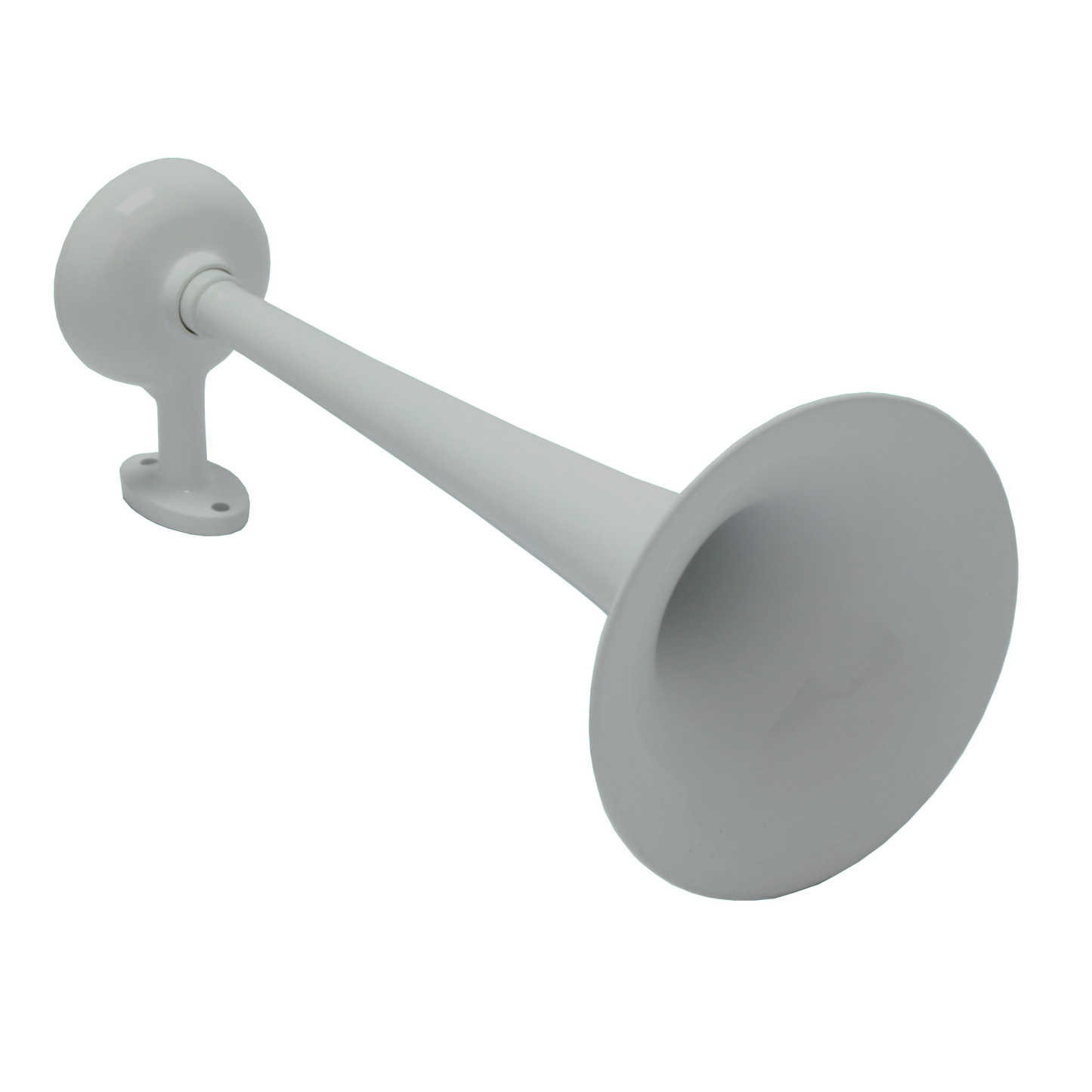

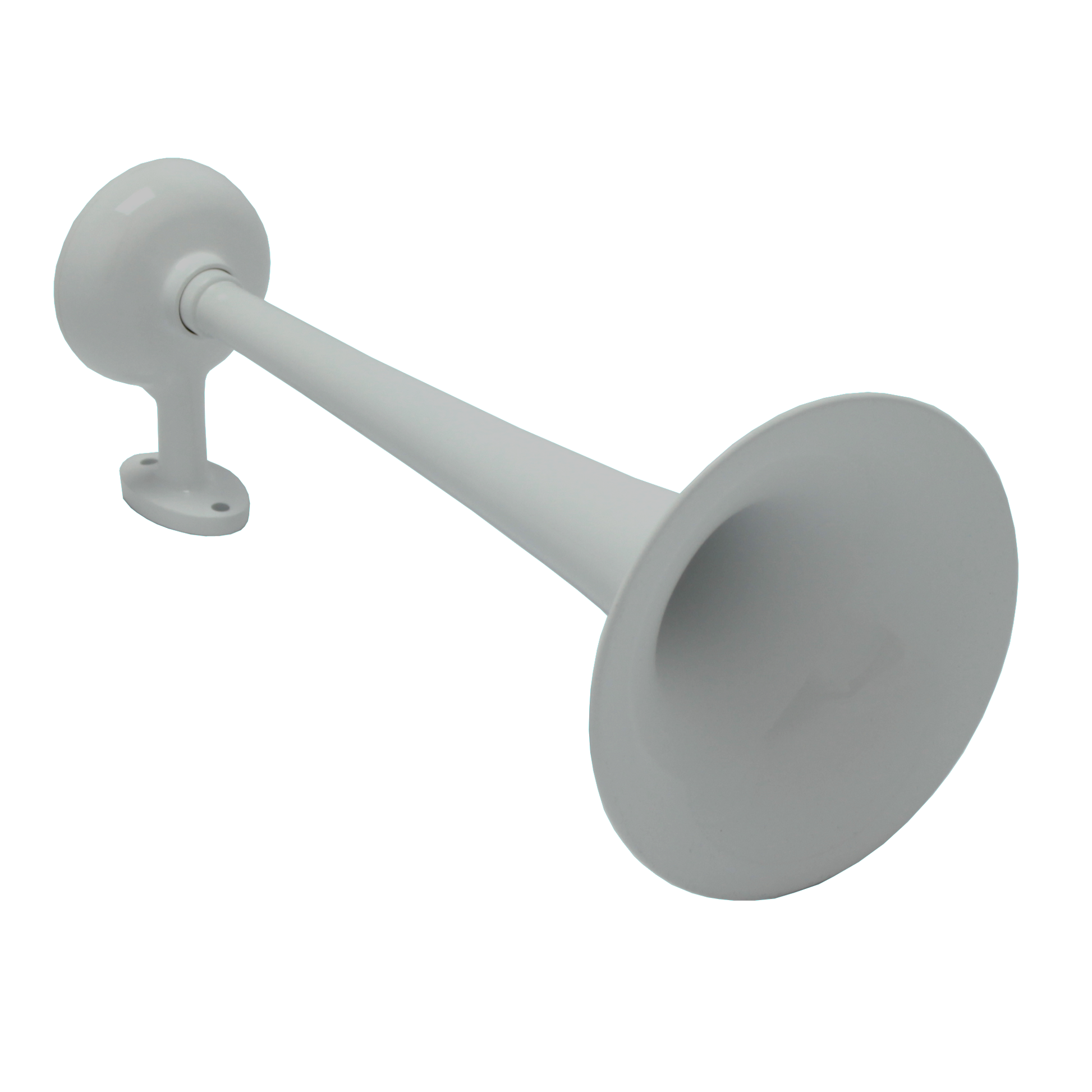

One of the Kahlenberg “Zero Series” range of air horns, the S-0A Air Horn is certified to international requirements (IMO COLREGS) for boats up to 65 feet (20 Meters) in length. Made entirely of bronze and brass, the S-0A is constructed for a lifetime of marine service. The S-0A requires significantly less air to achieve high dB levels and can be powered by extremely small compressed air systems to minimize associated cost and space requirements on board.
- Output exceeds other horns of similar size
- Made entirely of brass with bronze diaphragm
- Low air consumption allows for use of a very small compressor/tank kit as compared to other air horns
- Easy Installation with optional P449 Series Compressor Kits, V-69-K Valve Kits
Lead Time: 1 Week
Technical Specifications
Technical Specifications
Fundamental Frequency: 322 Hz
S.P.L. (dB(A) @ 1 Meter): 123 dB
Air Consumption: 9 C.F.M. @ 100psi, 4.2 l/s @ 7 bar
Air Pressure Required: 50 to 200psi, 3.5 to 14 bar
Electrical Power Required: 12 or 24 Volt DC (Compressor)
Material: Bronze & Cast Brass
Net Weight: 4.75 lbs., 2.15 kg.
Finishes: TGIC Sky White or grey Powdercoat, Unfinished Brass
Dimensions: 20.5” x 15.5” x 8.5” (524x394x217mm)
