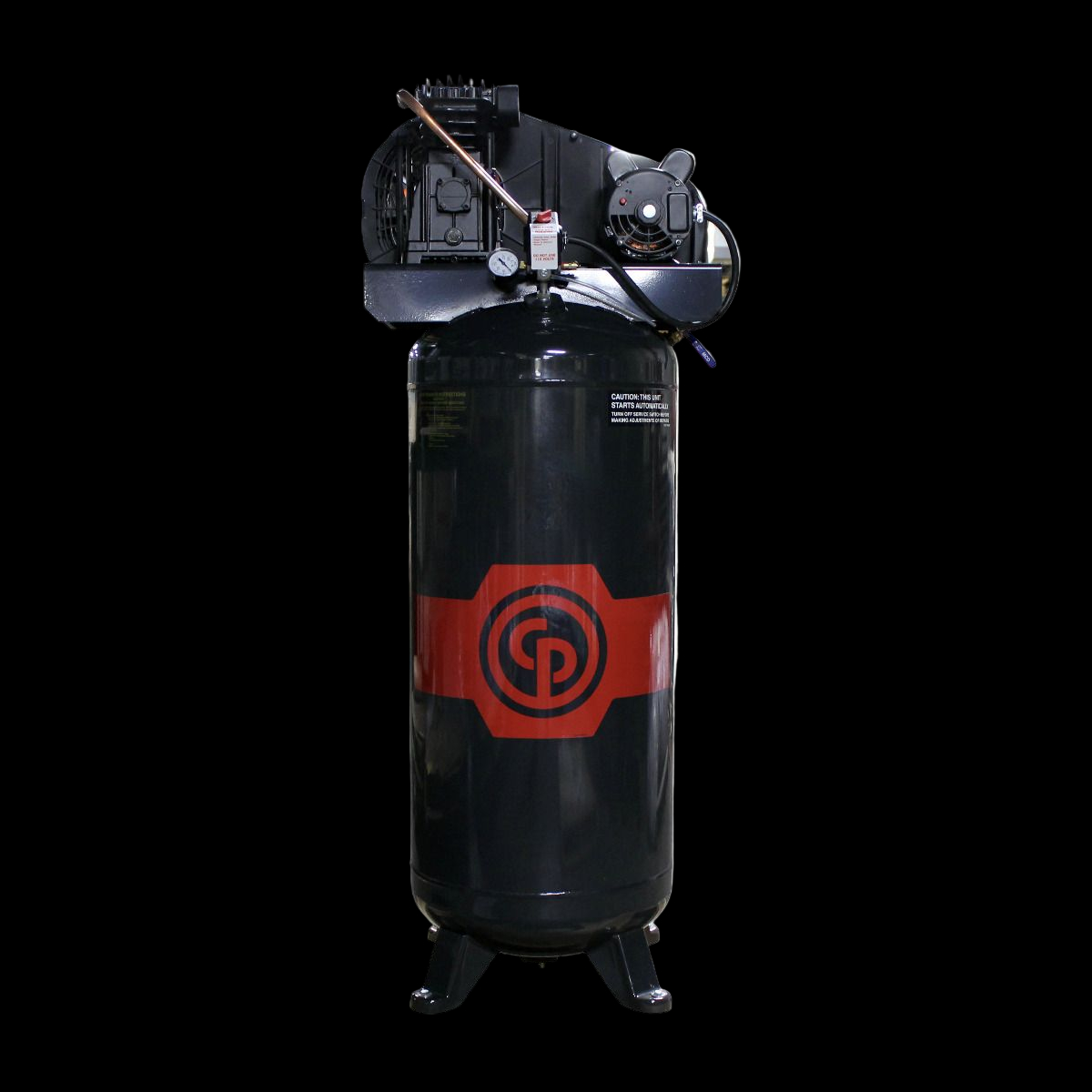

RCP60V Industrial Air Compressor
RCP60V Industrial Air Compressor
Regular price
$2,634.00 USD
Regular price
Sale price
$2,634.00 USD
Couldn't load pickup availability
The Horn Air Compressor Model RCP60V is a simple, durable, 3.5 HP, 60 gallon single stage compressor system for use with Kahlenberg industrial signaling devices.
- Solid Cast Iron Cylinder
- Start/Stop Pressure Control
- Fully Enclosed Belt Guard
- ASME/CRN Code Tank and Safety Valves
- Thermally Protected Electric Motor
- Easy to View Oil Sight Glass
- 1/4" Regulator
- Durable Polyester Powder-Coated Tank
Lead Time: 2 Weeks
Technical Specifications
Technical Specifications
Single Stage Stationary Electric Simplex Design
3.5 H.P, 208-230 Volt 1Ph. A.C.
12.4 C.F.M. Air Delivery @ 100 psi, Max 130 psi
60 Gallon ASME Vertical Air Receiver
Start/Stop Pressure Switch Set at 110 p.s.i. cut
in, 130 p.s.i. cut out
Fully Enclosed Beltguard, ASME Safety Valve,
Tank Drain and discharge valve
261 lbs./118 kg Shipping Weight
30” x 22” x 68” (762 x 559 x 1727mm)
