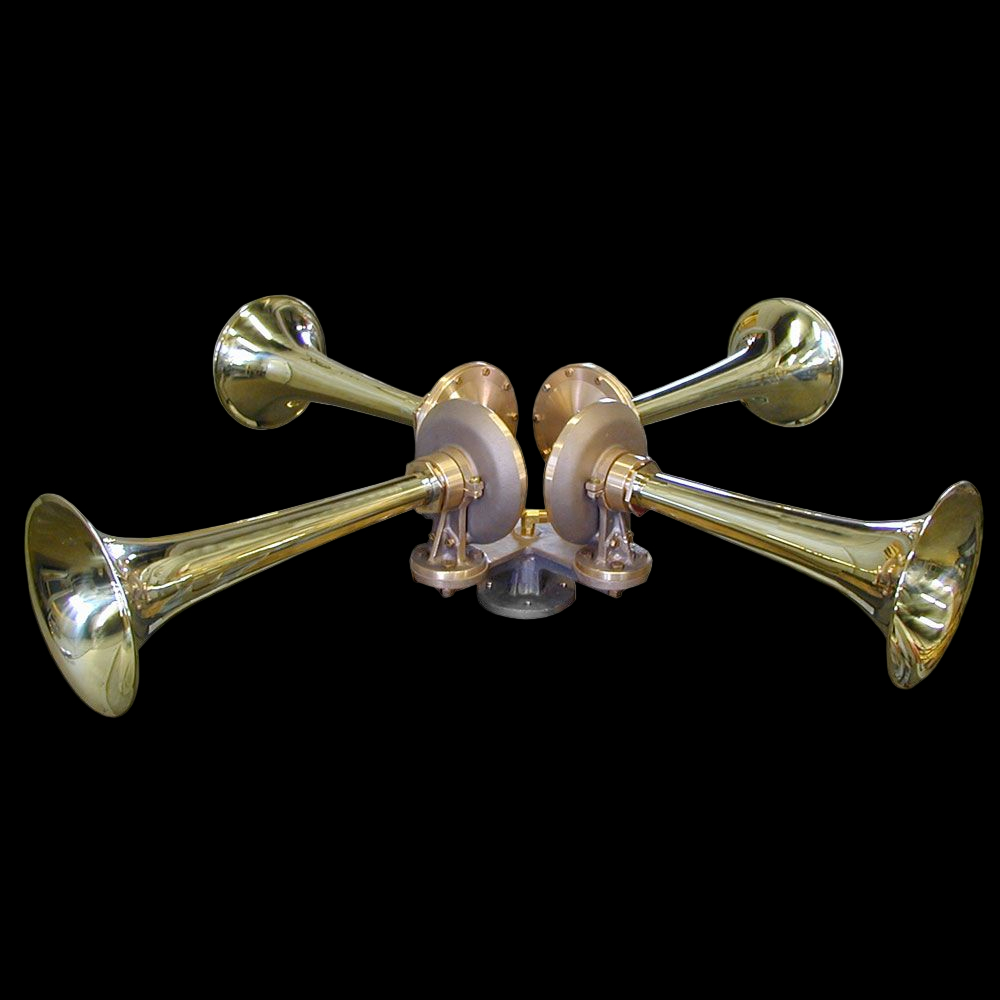

Q3-483-3 Arena Air Horn

Q3-483-3 Arena Air Horn

Often specified for use as a scoring signal in the largest arenas and stadiums, the Model Q-3 Fig. 483 Air Horn provides a blast of over 140 dB @ 1 Meter. The Q-3 combines two tones for optimum effect. Configured as an omni-directional unit, sound can be evenly distributed throughout the facility eliminating problems with weak or excessive decibel levels in certain seating areas. A complete system can be designed for use with the Q-3 Air Horn including compressor kits and controls.

  • Highly reliable, no maintenance
  • Low air consumption, operates on a wide range of air pressure
  • Omni-directional for even coverage throughout the facility
  • For use as a powerful scoring signal inside larger arenas

Lead Time: As Quoted

Technical Specifications

Fundamental Frequency: 174 & 208 Hz
S.P.L. (1/3 Octave, 1 Meter): 141 dB
Air Consumption: 96 C.F.M. @ 150psi.
Air Pressure Required: 100 to 250 psi
Electrical Power Required: Use with separate solenoid
valves, any voltage
Finish: None [standard], Optional White Powdercoat or Chrome Plate
Material: Cast Bronze & Spun Brass
Net Weight: 130 lbs.

Click Here for Technical PDF
