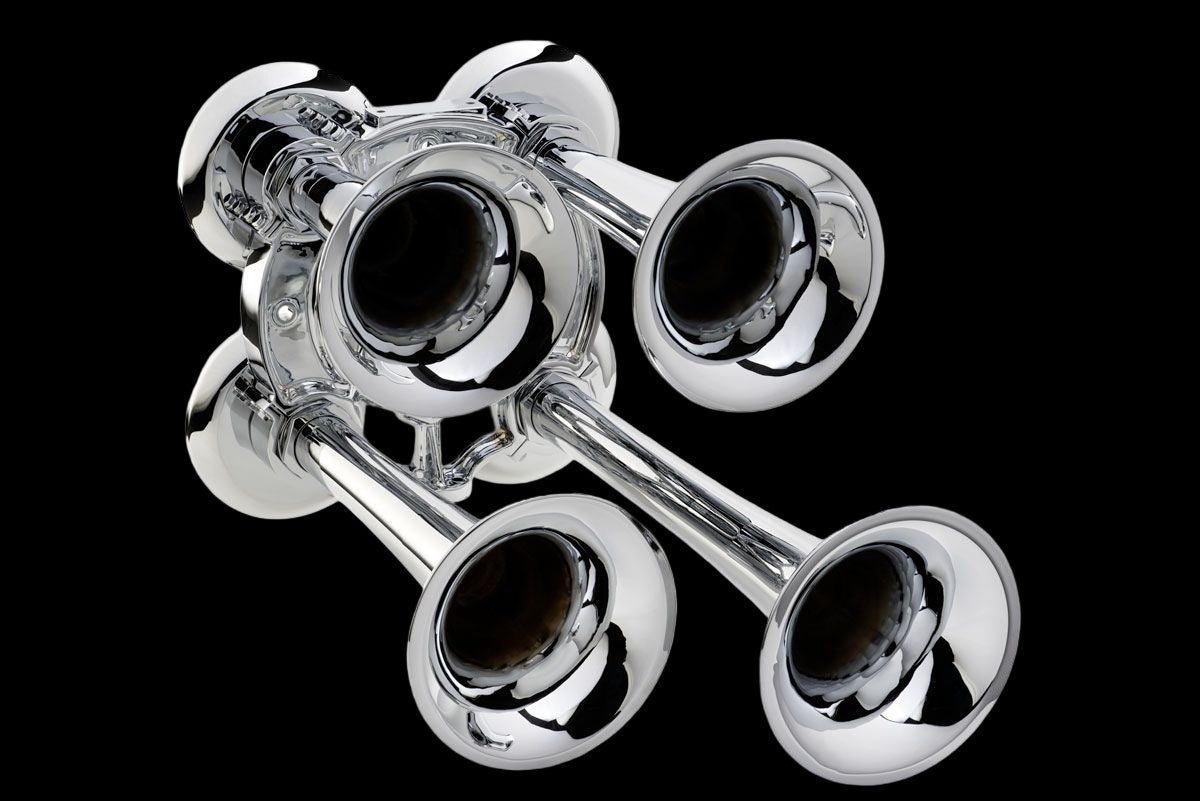

Q-4 Chrome Chimetone Air Horn
Q-4 Chrome Chimetone Air Horn
Couldn't load pickup availability
Kahlenberg Chimetone Air Horns all utilize more than one projector or “trumpet” in their design. These projectors each produce a different fundamental frequency which combine to produce powerful, distinctive, musical chords. To hear a Chimetone Air Horn is to realize that the sound of a vessel can be one of its most impressive aspects. The Model Q-4 Chrome Chimetone Air Horn is designed for the most discriminating yachtsman. It is made entirely of bronze and brass, and finished with the highest quality duplex nickel chrome plating.
- For vessels 75 to 200 Meters in length
- Meets or exceeds IMO Requirements
- Operates on a wide range of air pressure
- Highly reliable, virtually no maintenance required
- All brass and bronze construction
Lead Time: As Quoted
Technical Specifications
Technical Specifications
Fundamental Frequency: 106, 134, 171, 220 Hz
S.P.L. (1/3 Octave, 1 Meter): 141 dB
Air Consumption: 237 CFM @ 150psi, 112 I/s @ 10 bar
Air Pressure Required: 100 to 250 psi, 7 to 17 bar (Higher pressures with optional regulators)
Electrical Power Required: Any standard A.C. or D.C voltage
Material: Cast Bronze & Naval Brass
Net Weight: 280 lbs., 127 kg.
Finish: Kahlenberg Chrome Plate, TGIC Sky White Powdercoat
Dimensions: 37” x 24” x 24” (940x613x613mm)
