P449-17/34 Series Air Compressor Kit 1.1 Gallon

P449-17/34 Series Air Compressor Kit 1.1 Gallon

Regular price $578.00 USD
Regular price Sale price $578.00 USD
Sale Sold out
Voltage

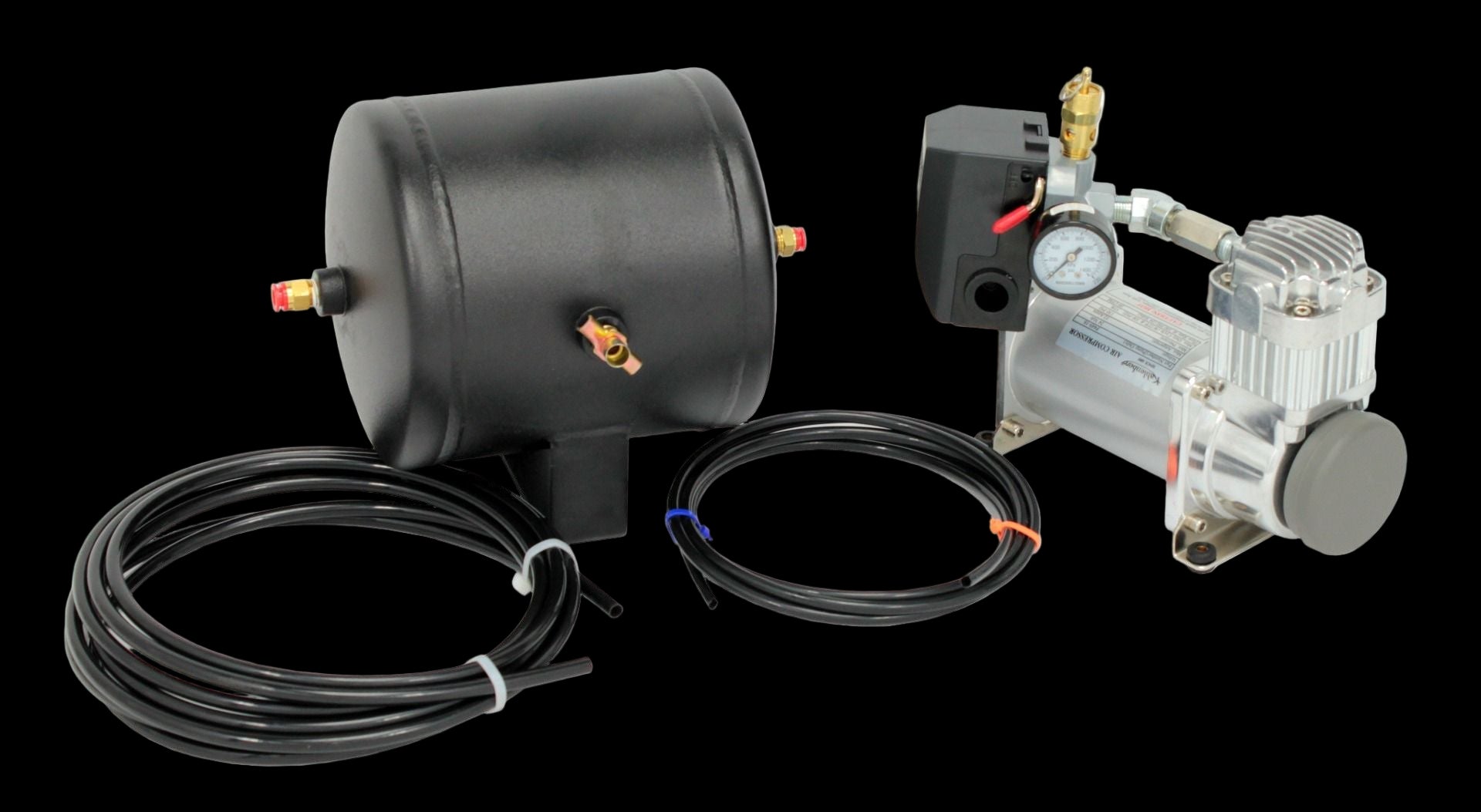

The Kahlenberg Horn Air Compressor Model P449-17 (12 Volt DC) /P449-34 (24 Volt DC) Systems are quiet, oil-less compressor solutions incorporating a compact, intermittent duty compressor pump, pressure switch, air gauge, and all tubing and fittings specifically arranged for marine use. Most often used with Model S-0A and D-0A Air Horns.

  • Quiet Operation: 69dBA @ 1 meter
  • Oil-less Operation: Minimizes maintenance by eliminating oil in air lines
  • Easy Installation: Fittings, air tank, and tubing are supplied, as are safety valve and air gauge
  • All fittings are instant connect: The only wiring required is connection of the compressor assembly to line voltage

Lead Time: 1 Week

Technical Specifications

Voltage: 12 V.D.C. (P449-17), 24 V.D.C. (P449-34)
Noise Level: 69 dB(A) @ 1 meter
Max Pressure: 150psi, 10.31 bar
Max Current: 12A @ 24 Volts, 21A @ 12 Volts
FAD @ 8 bar: .85 CFM, 24 I/min
Weight: 14 lbs., 6.4 kg, Compressor and Tank
Duty Cycle: 33%
Vibration Isolated / Thermal Protection: Yes
Wire Size: 12 AWG min.
Dimensions: See PDF
