M-705 Industrial Alarm Timer
M-705 Industrial Alarm Timer
Couldn't load pickup availability

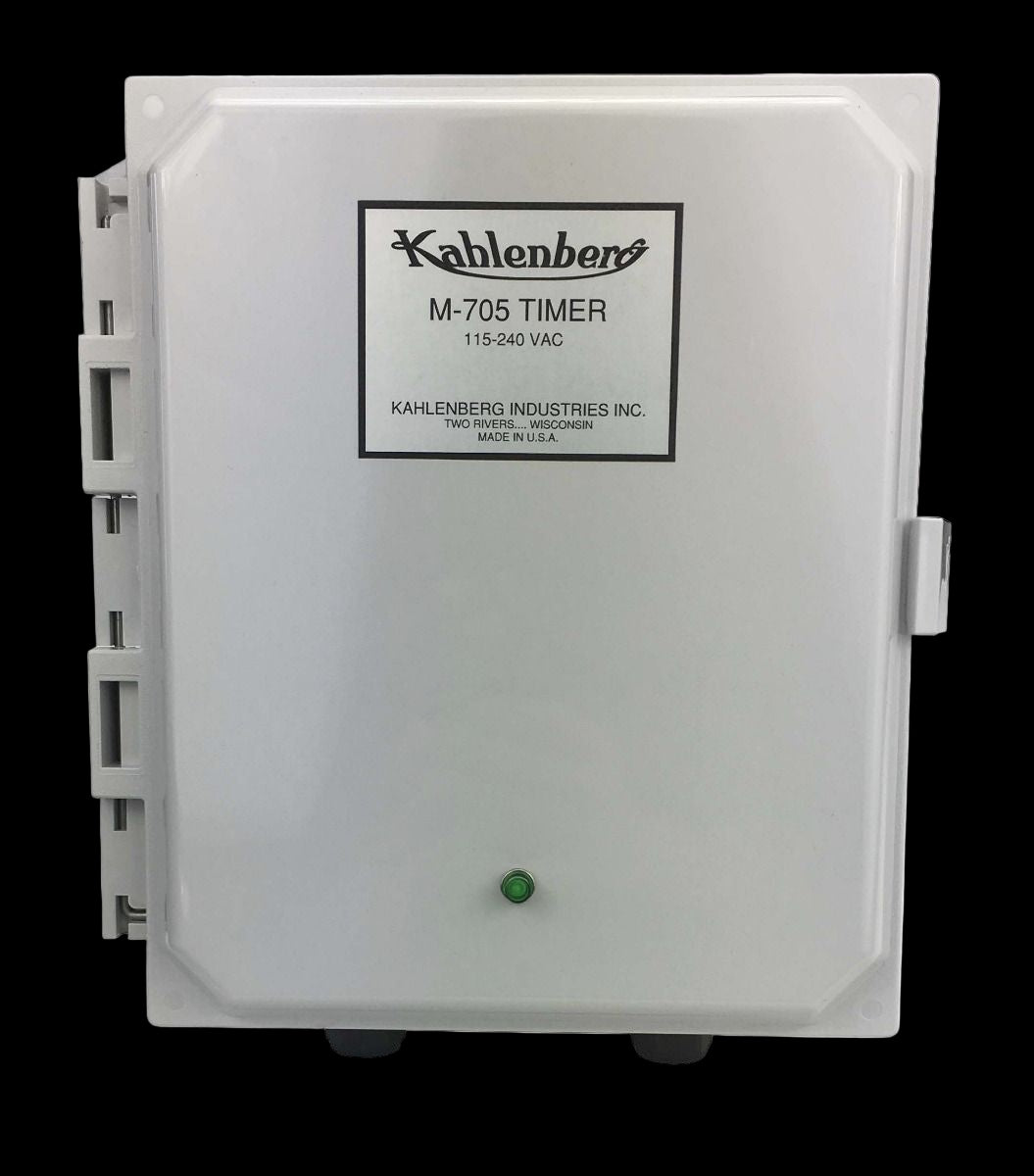

The Kahlenberg M-705 is an industrial warning timer which provides up to four custom programmed signal codes. Ideal for use in industrial facilities or any other application requiring custom coded signals, the M-705 signals are typically activated by separate wired momentary push button assemblies such as the Kahlenberg M-358 Control Station. A NEMA 4, 4X, polycarbonate enclosure ensures durability and protection against water and dust in interior or outdoor installations.
- 4 Inputs, 4 Outputs of Custom Programmed Signals
- Ideal for Indoor or Outdoor Installations
- Durable watertight construction
- Operates with separate wired M-358 Control Station
Lead Time: As Quoted
Technical Specifications
Technical Specifications
Supply Voltage: 115-240 Volts A.C.
Power Consumption: 40mA@120VAC
Relay Rating: 3A@240V A.C.
Temperature Rating: -25 to 50 deg. C. (-13 to 122 deg. F)
Timer Settings: Up to 4 on/off signal code patterns of varying blast durations/off times
Enclosure: NEMA 4, 4X, 12, 13 Polycarbonate, UL, CSA, CE Conforming
Net Weight: 2 lbs., 1 kg.,
Dimensions: 11.5” x 9.75” x 5.5” (292x248x140)
