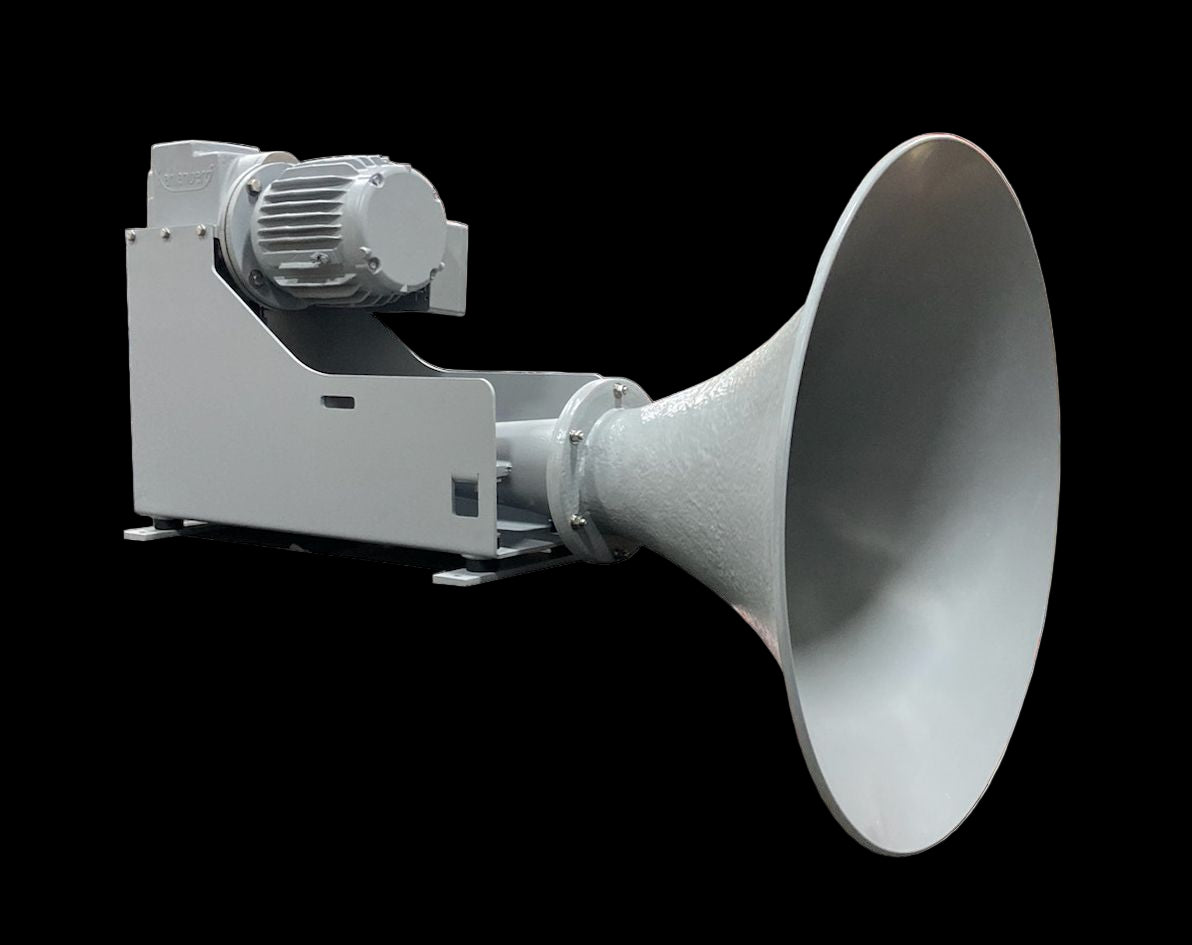

KPH-90C Electric Piston Horn

The Kahlenberg KPH-90C "Triton" Electric Piston Horn is the lowest frequency electric horn manufactured by Kahlenberg. Utilizing a 7.5 horsepower electric motor to drive a piston which oscillates air in a column, it includes an entirely oil-less crankcase and gear case, steel gears, anti-condensation heating and self-draining cylinder assembly. These piston horns are highly reliable ship's whistles requiring little maintenance. Installation costs are minimal since no air or steam piping is required. Use with KM-135-DVM-H for dual whistle systems on vessels over 200 Meters.

• Piston horn is electrically powered and IMO certified for vessels over 200 meters in length

• Horn construction: High strength aluminum bell, supporting frame, aluminum crankcase, stainless steel cylinder and fasteners

• Self draining design to prevent condensation and corrosion

• Oil free, heated crankcase and piston cylinder assembly

• Motor is totally enclosed, marine type, IP56, insulation class F and equipped with anti-condensation strip heater

• Motor starter (contactor) comes with solid state relay with thermal overload protection


Lead Time: As Quoted
