KM4-135-EN Air Alarm

KM4-135-EN Air Alarm

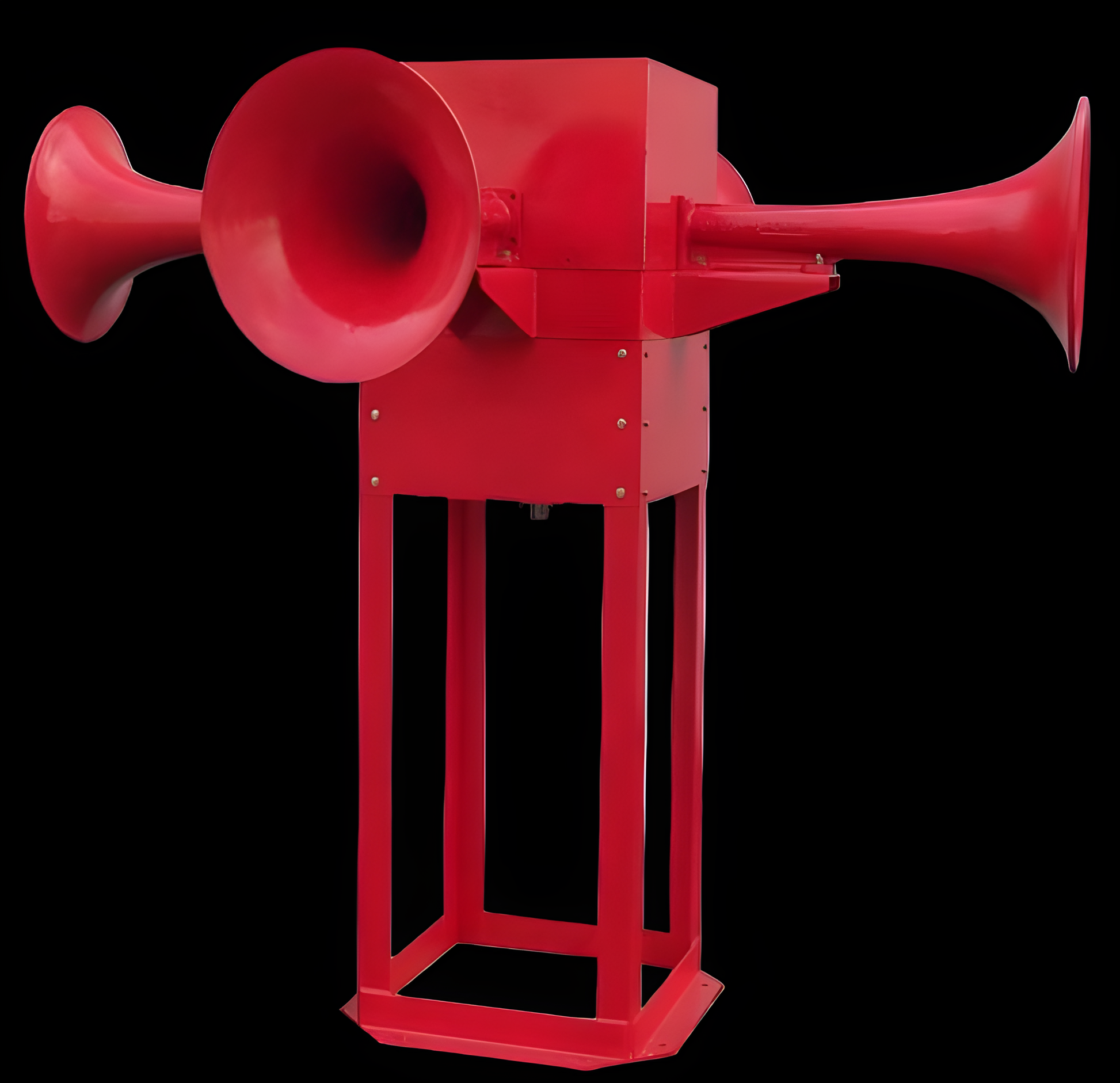

Kahlenberg Model KM4-135-EN Air Alarm is the largest, most powerful air powered horn assembly available. This horn assembly is designed to operate in the most severe outdoor applications. It is simply constructed and extremely reliable resulting in a very low cost of use as compared to more complicated means of sound production.

  • Fully enclosed and heated air horn for corrosion and weather resistance (available non-heated)
  • Single tone, 135 Hz (other frequencies available)
  • Heaters supplied with thermostat preset to turn on at 40ºF (4ºC) and off at 55ºF (13ºC), 600 watt heating capacity
  • Solenoid valves come standard with explosion proof coil and are available in 120 Volt AC, 240 Volt AC/50-60Hz or 12, 24, 48 Volt DC
  • Designed for arctic freezing conditions
  • Constructed of aluminum with steel supporting frame

Lead Time: As Quoted

Technical Specifications

Fundamental Frequency: 135 ± 10 Hz
S.P.L. @ 1 Meter: 149 dB(A)
Operating Medium: Air, Nitrogen
Control: Manual & Solenoid Combination Valve
Air Consumption: 271 L/sec [576 CFM] @ 8.6 bar [125psi]
Operating Temperature: -40°C to 65°C [-40°F to 149°F]
Operating Pressure: 5-10 bars [75-150 psi]
Finish: Epoxys Safety Red
Degree of Protection: IP55
Dimensions: 2296 x 2296 x 1854 mm [90” x 90” x 73”]

Click Here for Technical PDF
