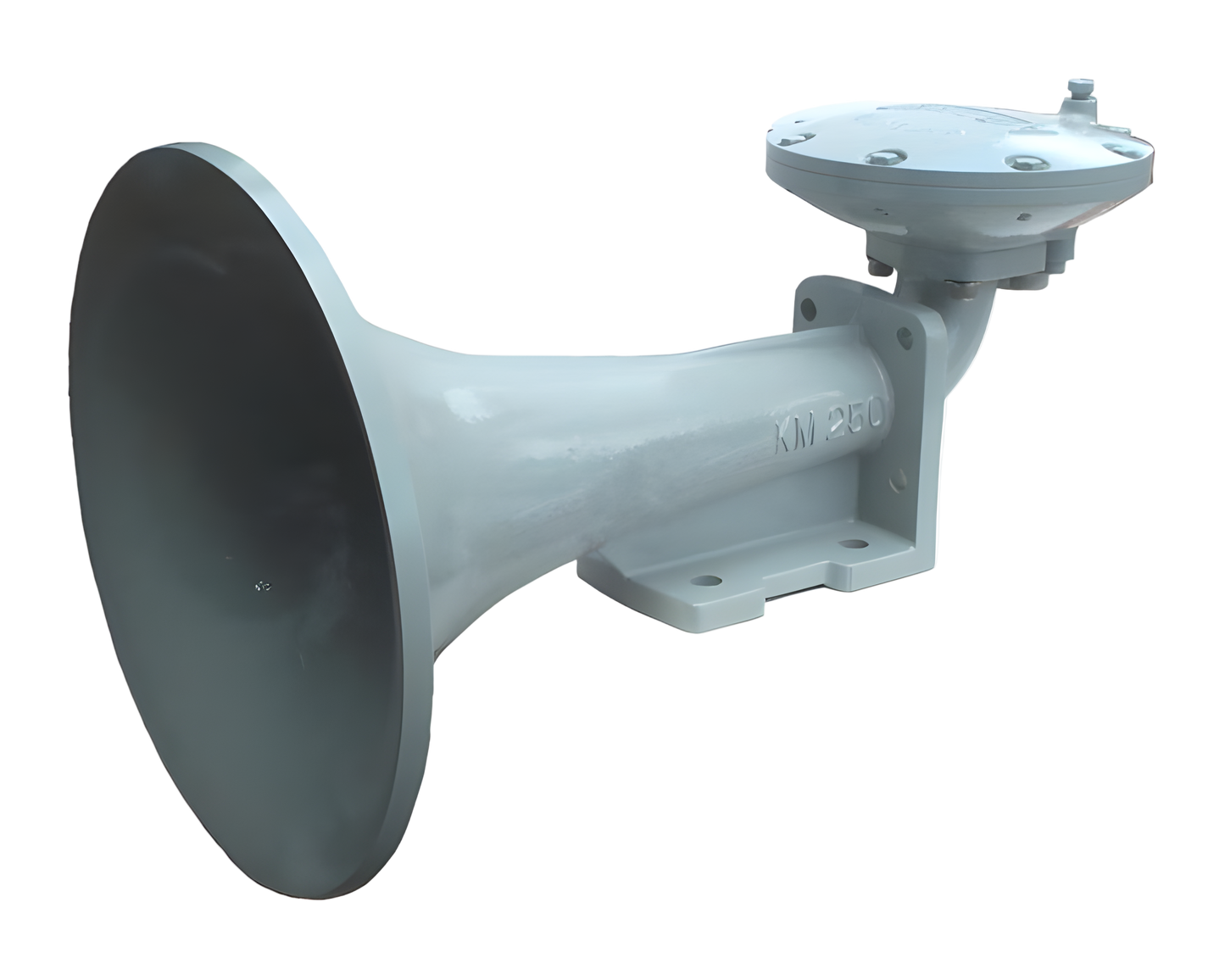

KM-250 Air Horn

Finish Gray

Designed for use on commercial and military vessels 75 to 200 Meters in length, Kahlenberg KM Series Air Horns are extremely durable units built for a lifetime of trouble-free service.

Ruggedly constructed to withstand the harsh marine environment with cast marine aluminum bell, stainless steel diaphragm and fasteners
Patented three piece hermetically sealed stainless steel diaphragm assembly
Self draining design to prevent water condensation and corrosion

Lead Time: As Quoted

Click to Hear Pause

Technical Specifications

Fundamental Frequency: 250 Hz
S.P.L. (1/3 Octave): 138dB
Control: External Manual, Electric Solenoid, or Combination Manual/Electric Valve
Finish: Epoxy Primed, Painted Marine Grey, White Optional
Operating Temperature: -4°C to 80°C (24°F to 176°F)
Degree of Protection: IP56
Air Consumption: 50L/sec [106 SCFM] on 8.3 bar [120psi]
Net Weight: 12 kg (27 lbs)
Dimensions: 557x343x343 mm (22x14x14 in)
