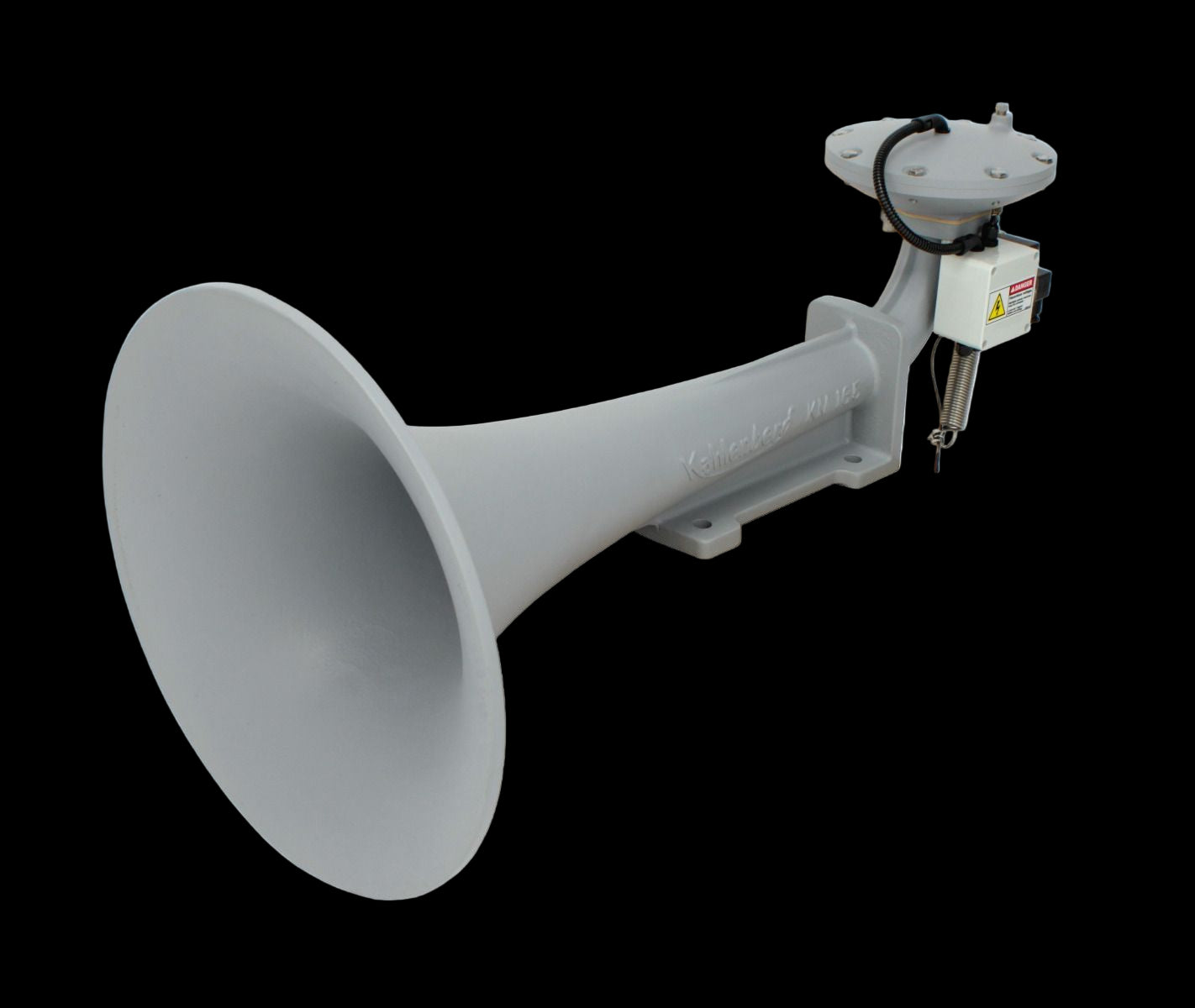

KM-165-DVM-H Air Horn
KM-165-DVM-H Air Horn
Couldn't load pickup availability
Designed for use on commercial and military vessels over 75 Meters in length, Kahlenberg KM-165-DVM-H Air Horn IMO compliant, and is an extremely durable unit built for a lifetime of trouble-free service. A heated external combination valve assembly and heated head reduces weight, product cost, and installation costs while preserving durability and the ability to operate in the most extreme weather conditions.
- Ruggedly constructed to withstand the harsh marine environment
- Heated, thermostatically controlled combination manual override and dual electric solenoid valves (230 or 120 VAC / 24VDC) AND heated diaphragm assembly
- Valve assembly is field adjustable for air pressure of 5 to 40 bar (75-580 p.s.i.)
- Patented three piece hermetically sealed stainless steel diaphragm assembly
- Self draining design to prevent water condensation and corrosion
Lead Time: As Quoted
Technical Specifications
Technical Specifications
Fundamental Frequency: 165 Hz
S.P.L. (1/3 Octave): 143 dB
Control: Manual pull, 230 or 120 VAC, 24DC (8 watts)
Voltage and Consumption: Combined Heaters: 70W
Operating Temperature -40°C to 80°C (-40°F to 176°F)
Air Consumption: 50L/sec [106 SCFM] on 8.3 bar [120psi]
Net Weight: 17 kg (37 lbs)
Dimensions: 864x457x457 mm (34x18x18 in)
