KM-110 Air Horn
KM-110 Air Horn
Couldn't load pickup availability

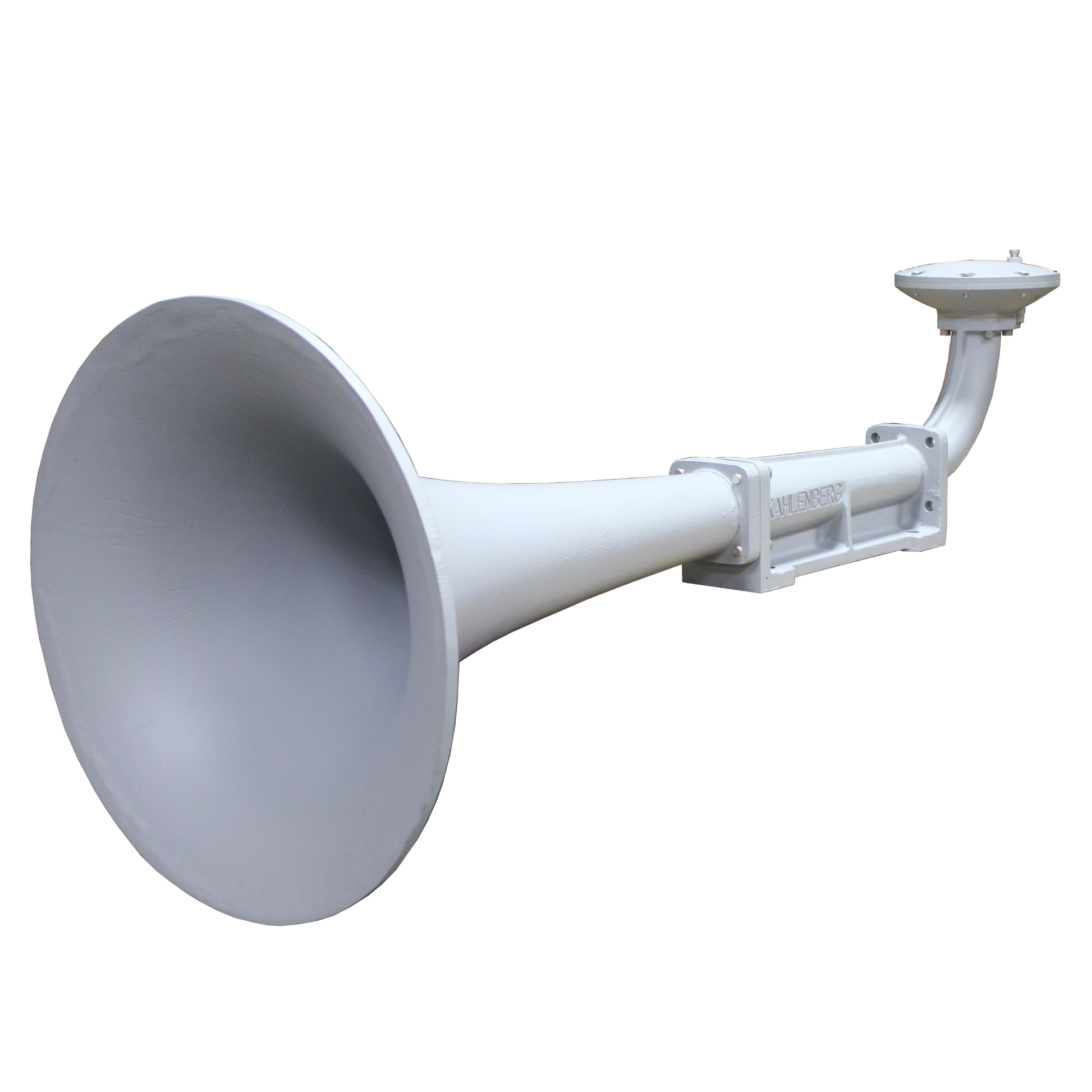

Designed for use on commercial and military vessels over 200 Meters in length, the Kahlenberg KM-110 Air Horn is an extremely durable unit built for a lifetime of trouble-free service. Use with KM-135 or KPH-130C for dual whistle systems on vessels over 200 Meters in length.
- Ruggedly constructed to withstand the harsh marine environment with cast marine aluminum bell, stainless steel diaphragm and fasteners
- Patented three piece hermetically sealed stainless steel diaphragm assembly
- Self draining design to prevent water condensation and corrosion
Lead Time: As Quoted
Technical Specifications
Technical Specifications
Frequency: 110 Hz
S.P.L. (1/3 Octave): 143 dB
Control: External Manual, Electric Solenoid, or Combination Manual/Electric Valve
Finish: Epoxy Primed, Painted Marine Grey, White Optional
Operating Temperature: -4°C to 80°C (24°F to 176°F)
Degree of Protection: IP56
Air Consumption: 64L/sec [136 SCFM] on 8.3 bar [120psi]
Net Weight: 24 kg (52 lbs)
Dimensions: 1378x559x559 mm (54x22x22 in)
