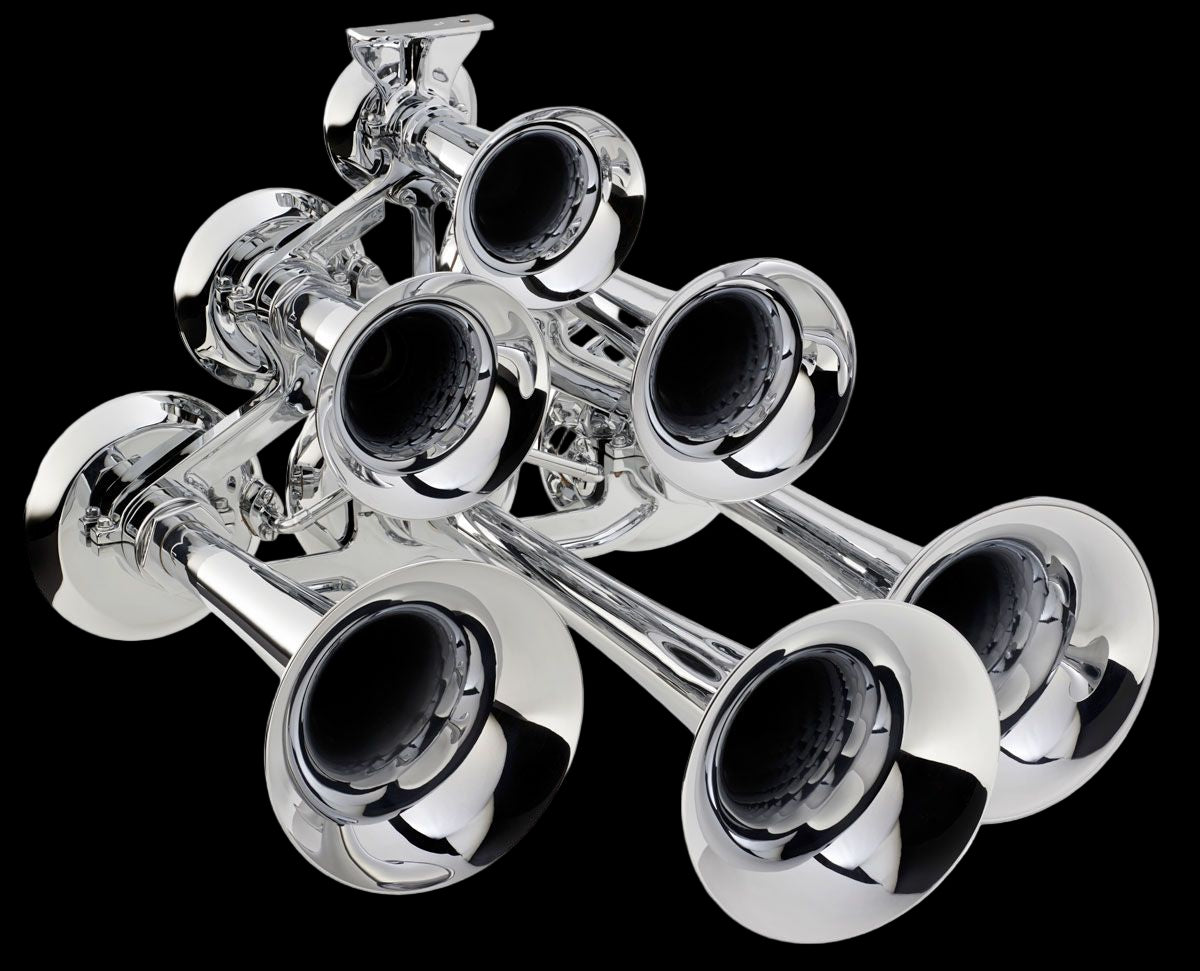

KDT-123 Chrome Chimetone Air Horn
KDT-123 Chrome Chimetone Air Horn
Couldn't load pickup availability
Kahlenberg Chimetone Air Horns all utilize more than one projector or “trumpet” in their design. These projectors each produce a different fundamental frequency which combine to produce powerful, distinctive, musical chords. To hear a Chimetone Air Horn is to realize that the sound of a vessel can be one of its most impressive aspects. The Model KDT-123 Air Horn is designed for the most discriminating yachtsman. It is made entirely of bronze and brass, and is triple plated for a deep chrome finish.
- For vessels less than 75 Meters in length
- Meets or exceeds IMO Requirements
- Low Air Consumption, operates on a wide range of air pressure
- Highly reliable, virtually no maintenance required
- All brass and bronze construction
Lead Time: As Quoted
Technical Specifications
Technical Specifications
Fundamental Frequency: 142 to 416 Hz
S.P.L. (1/3 Octave, 1 Meter): 134 Db
Air Consumption: 91 CFM @ 100psi, 43 I/s @ 10 bar
Air Pressure Required: 100 to 250 psi, 7 to 17 bar (Higher pressures with optional regulators)
Electrical Power Required: Any standard A.C. or D.C voltage
Material: Cast Bronze & Spun Brass
Net Weight: 110 lbs., 50 kg.
Finish: Kahlenberg Chrome Plate, TGIC Sky White Powdercoat
Dimensions: 30.75” x 28” x 21.5” (781x711x546mm)
