KDT-123 Arena Air Horn
KDT-123 Arena Air Horn
Couldn't load pickup availability

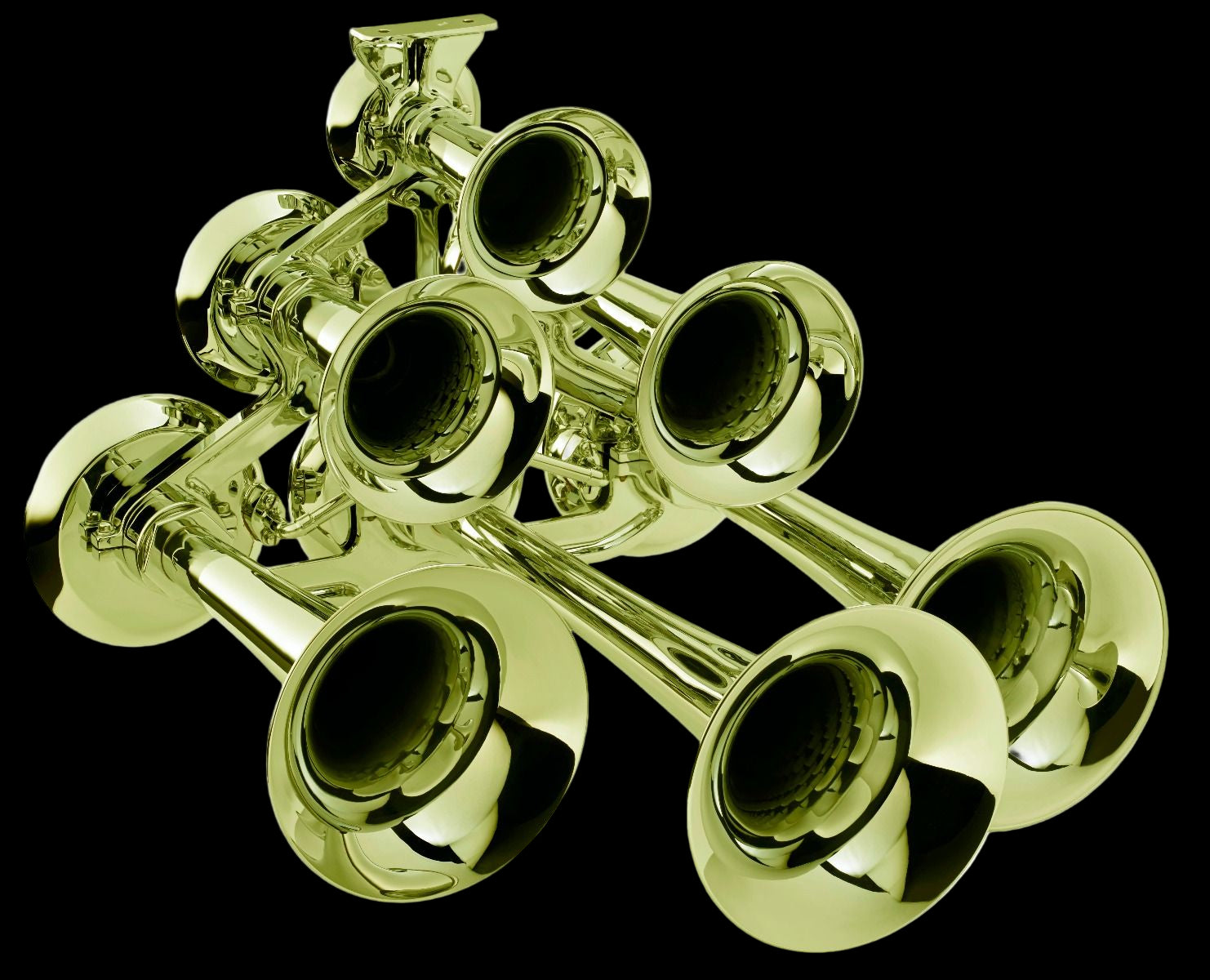

Originally designed for use on marine vessels up to 250 feet long, the Model KDT-123 Air Horn is an impressive unit. Providing a sound pressure level of over 142 dB @ 1 Meter, the KDT-123 combines six tones for optimum effect. A complete system can be designed for use with the KDT-123 Air Horn including compressor kits and controls.
- Highly reliable, no maintenance
- Low air consumption, operates on a wide range of air pressure
- Available as a uni-directional assembly only
- For use as a powerful scoring signal inside larger arenas
Lead Time: As Quoted
Technical Specifications
Technical Specifications
Fundamental Frequency: 142 to 416 Hz
S.P.L. (1/3 Octave, 1 Meter): 134 Db
Air Consumption: 91 CFM @ 100psi, 43 I/s @ 10 bar
Air Pressure Required: 100 to 250 psi, 7 to 17 bar (Higher pressures with optional regulators)
Electrical Power Required: Any standard A.C. or D.C voltage
Material: Cast Bronze & Spun Brass
Net Weight: 110 lbs., 50 kg.
Finish: Kahlenberg Chrome Plate, TGIC Sky White Powdercoat
Dimensions: 30.75” x 28” x 21.5” (781x711x546mm)
