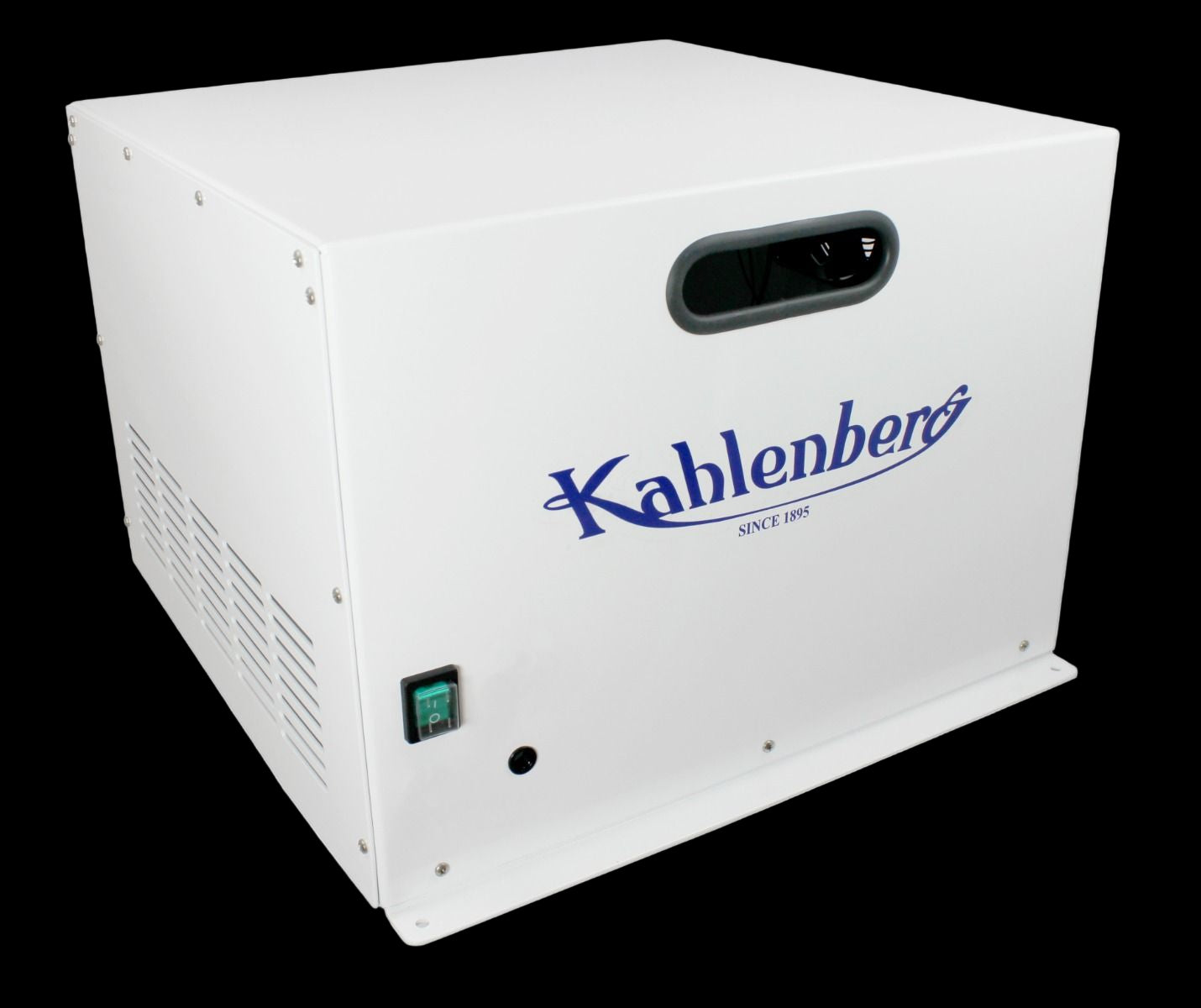

KC-6A Air Compressor

KC-6A Air Compressor

The Kahlenberg Model KC-6A Air Compressor is an extremely quiet, compact, oil-less air compressor solution designed for marine use. The KC-6A includes a 120 psi (8 bar) max compressor pump/pressure switch assembly that accepts simple connection of line voltage and 3/8” (10mm) OD air tubing. The KC-6A is available as a stand-alone air source or in combination with Kahlenberg Air Receiver Kits which include the air receiver and all necessary accessories for a complete system installation.

  • Quiet Operation: 64dBA @ 1 meter
  • Low Maintenance: Oil-less, Continuous Duty Operation
  • Simple Installation: Connect line voltage and flexible air tubing
  • Fan cooled enclosure with thermal protection
  • Complete Kits Available: Including ASME Air Tank, and accessories specifically designed for Kahlenberg Air Horn Installations conforming to IMO Requirements.

Lead Time: As Quoted

Technical Specifications

Output: 6 C.F.M. FAD @ 100 p.s.i., 170 I/m @ 8 bar
Max Pressure: 120 p.s.i. (8 bar)
Voltage Required: 120 VAC, 60 Hz or 230 VAC, 50/60 Hz
Max Current: 6.8A @ 230 Volts 13A @ 120 Volts
Enclosure: 5052 Aluminum 316 Stainless Steel
Weight: 66 lbs., (30kg)
Dimensions; 21.25” x 21.25” x 14.31” (540x540x364mm)

Click Here for Technical PDF
