KB-15G Electric Horn/Hailer
KB-15G Electric Horn/Hailer
Couldn't load pickup availability

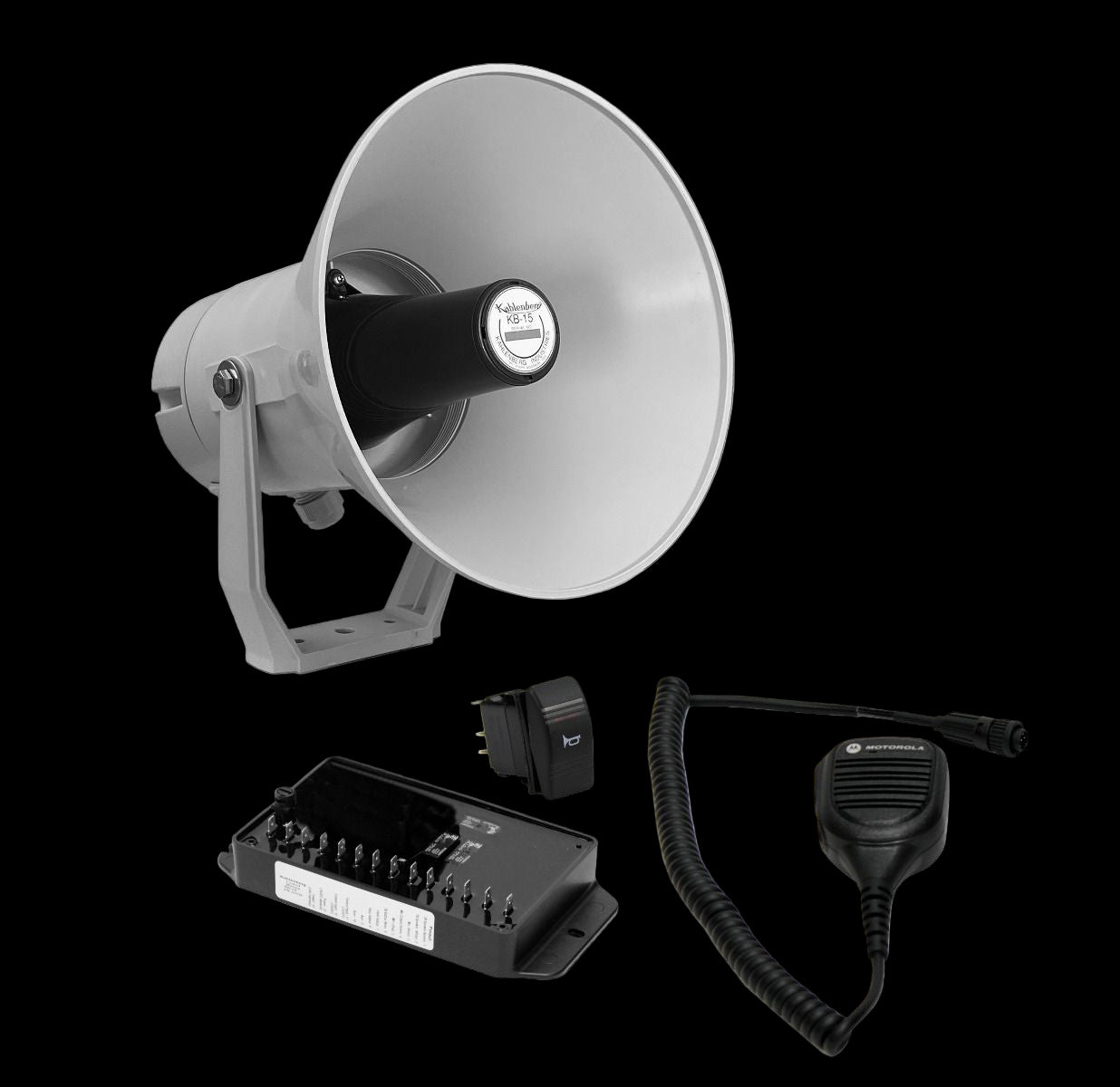

The KB-15G is a type approved Electronic Horn and Voice Hailing system for marine use that produces a powerful horn signal for all types of vessels up to 20 meters in length. In addition, the KB-15G-BASE model provides voice amplification for marine hailing purposes. Included are a "black box" control module for mounting inside the helm station, "push to talk" microphone with mounting bracket, and a high output marine duty speaker made entirely from corrosion proof materials. Auxiliary inputs are included for connection of other audio sources such as radios or public address systems. The KB-15G Horn Signal is ideally controlled with the included Kahlenberg M-127 rocker switch, but can be configured for use with any standard momentary contact push button or Kahlenberg Signal Timer/Control for automatic operation.
- 121 dB of Horn and Hailing Power
- Marine Duty UV Protected Polyamide Speaker (not cheap plastic)
- Type Approved for Vessels up to 20 Meters in Length
- "Black Box" CM-15 control unit with console mount speaker/microphone included
- Operates with M-127 Push Button and/or any Kahlenberg Signal Control Timer for automatic fog signaling
- Multiple Horns can be controlled from single station for hailing/talkback and/or horn signal
- Auxiliary Audio Input provided for use with other audio sources
- Operates on 12 or 24 Volt D.C. electrical current
- Integrates with other VHF/Hailer Systems with optional P490-16 Line Level Converter
Lead Time: 1 Week
Technical Specifications
Technical Specifications
Fundamental Frequency: 698 Hz
S.P.L. (1/3 Octave, 1 Meter): 121 dB
S.P.L. (dB(A)): 121 dB
Ingress Protection: IP67
Operating Temperature Range: -30°F (-34°C) — 120°F (49°C)
Electrical Power Required: 12 or 24 Volt DC, 30W
Material: Polyamide, Stainless Steel Fasteners
Net Weight: 4 lbs., 1.8 kg
Finishes: N/A (Raw Polyamide)
Dimensions: 11.25” x 9.3” x 10.6” (286 x 237 x 269.5mm)
