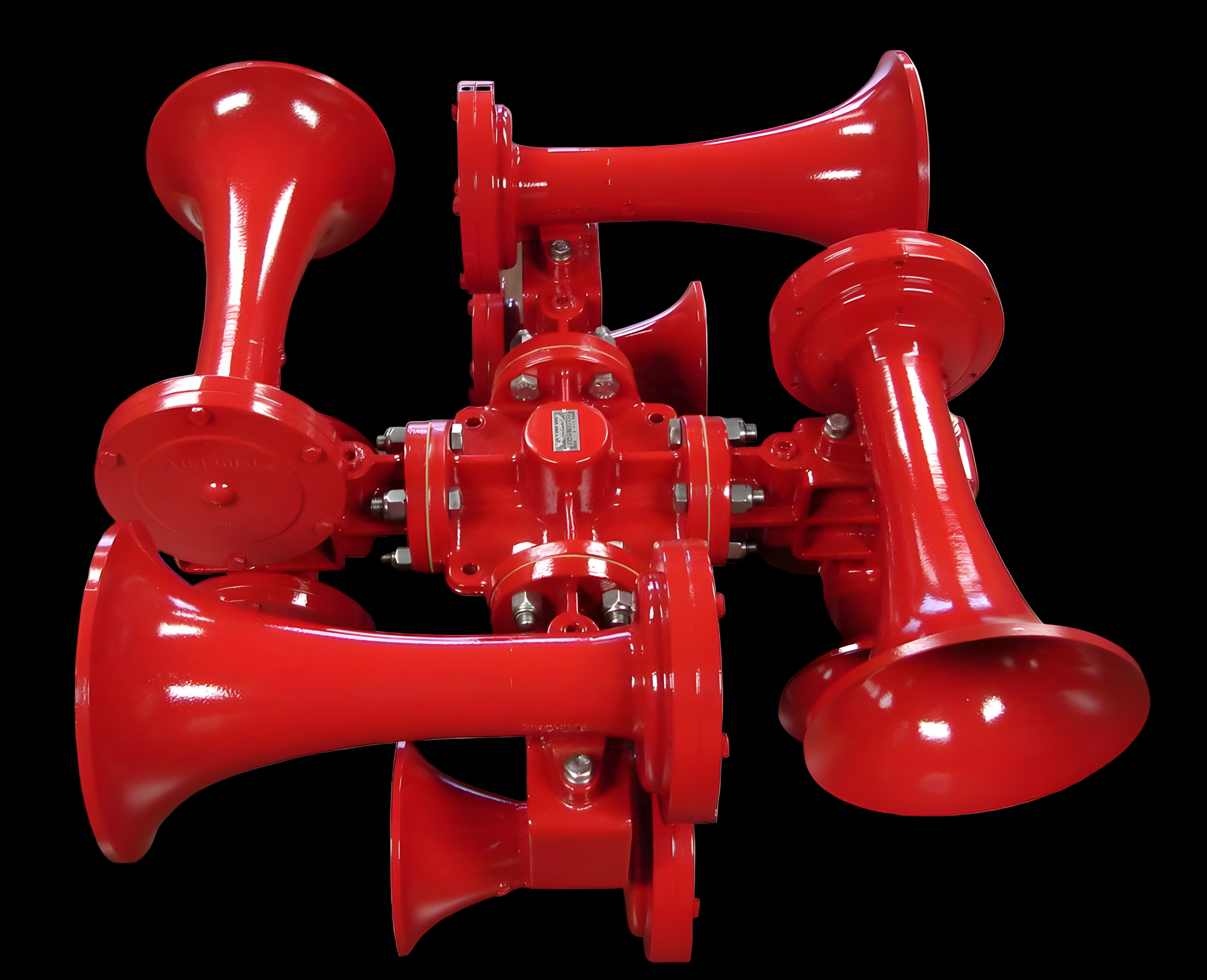

K4-25 Air Alarm

K4-25 Air Alarm

Kahlenberg Model "K" Air Alarms are powerful signals backed by years of successful performance in coal yards, chemical plants, open pit mines and industrial facilities throughout the world. All of these horns and whistles are designed to operate in the most severe outdoor applications. They are simply constructed and extremely reliable resulting in a very low cost of use as compared to more complicated means of wide area warning.

  • Dual tone, 370 and 622 Hz fundamental frequency, engineered to produce full harmonic contents up to 12 octave in order to enhance warning effectiveness
  • Ideal for high-noise industrial areas, 8 km/5 mile audibility range
  • Energy efficient with hermetically sealed stainless steel diaphragm assembly
  • Will operate on a wide range of pressure without tuning or adjustment for years of trouble free service
  • Constructed of high strength cast aluminum and stainless steel fasteners

Lead Time: As Quoted

Technical Specifications

Fundamental Frequency: 370 & 622 ± 10 Hz
S.P.L. @ 1 Meter: 142 dB(A)
Operating Medium: Air, Nitrogen, CO2, 1-1/4” NPT inlet
Control: Manual, Solenoid or Combination Valve
Air Consumption: 90 L/sec [190 SCFM] @ 7 bar [100psi]
Operating Temperature: -20°C to 80°C [-4°F to 176°F]
Operating Pressure: 5-10 bars [72-145 psi]
Finish: Primed and Painted Red Epoxy
Net Weight: 54 lbs., 24.5 kg.
Degree of Protection: IP54
Dimensions: 601 x 601 x 351 mm [24” x 24” x 14”]

Click Here for Technical PDF
