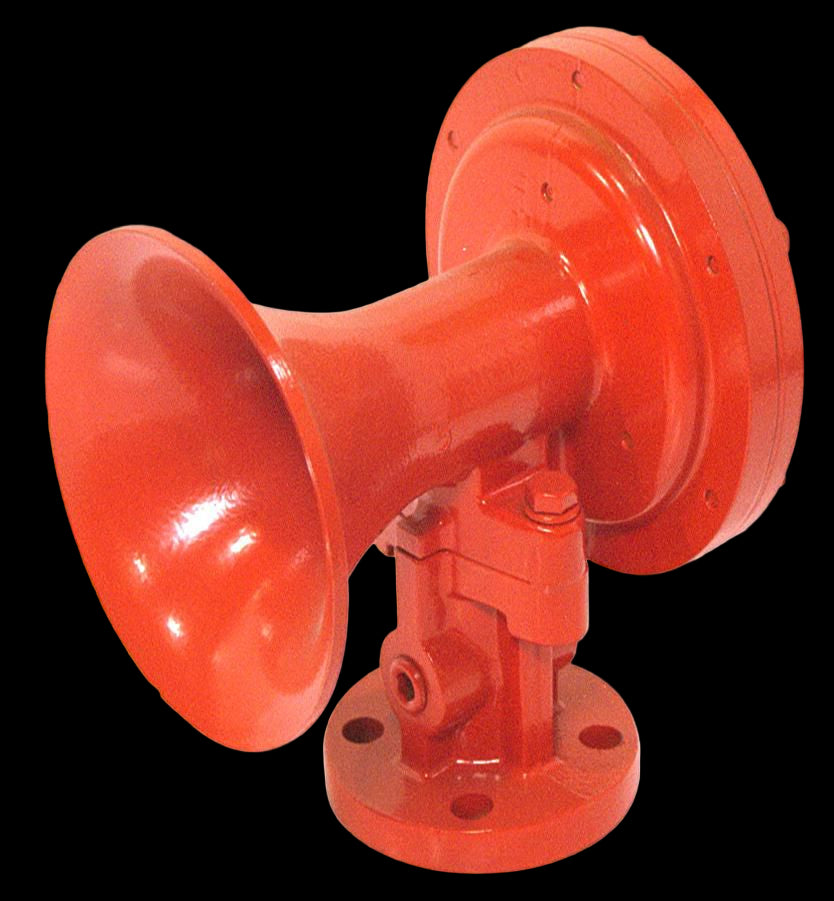

K-5 Industrial Air Horn
K-5 Industrial Air Horn
Couldn't load pickup availability
Kahlenberg Model "K" Industrial Horns are powerful signals backed by years of successful performance in coal yards, chemical plans, open pit mines and industrial facilities throughout the world. All of these horns and whistles are designed to operated indoors as well as in the most severe outdoor applications. They are simply constructed and extremely reliable resulting in a very low cost of use as compared to more complicated means of sound production.
- Ideal for outdoor Industrial applications
- Single tone, 622 Hz fundamental frequency, engineered to produce full harmonic contents up to 12 octaves which greatly enhance warning effectiveness
- Horn is energy efficient with hermetically sealed diaphragm assembly which operates on a wide range of pressure without tuning or adjustment
- Horn construction: High strength aluminum casting, stainless steel diaphragm discs and fasteners
Lead Time: 1 Week
Technical Specifications
Technical Specifications
Fundamental Frequency: 622 ± 30 Hz
S.P.L. (1/3 Octave, 1 Meter): 139 dB
Operating Medium: Air, Nitrogen, CO2 1/2” NPT Inlet
Control: Manual, Solenoid or Combination Valve
Air Consumption: 11 L/sec [24 SCFM] @ 7 bar [100psi]
Operating Temperature: -20°C to 80°C [-4°F to 176°F]
Operating Pressure: 2-10 bars [30-150 psi]
Finish: Painted Red
Net Weight: 2 kg [4.5 lbs]
Degree of Protection: IP54
Dimensions: 228 x 152 x 203 mm [9” x 6” x 8”]
