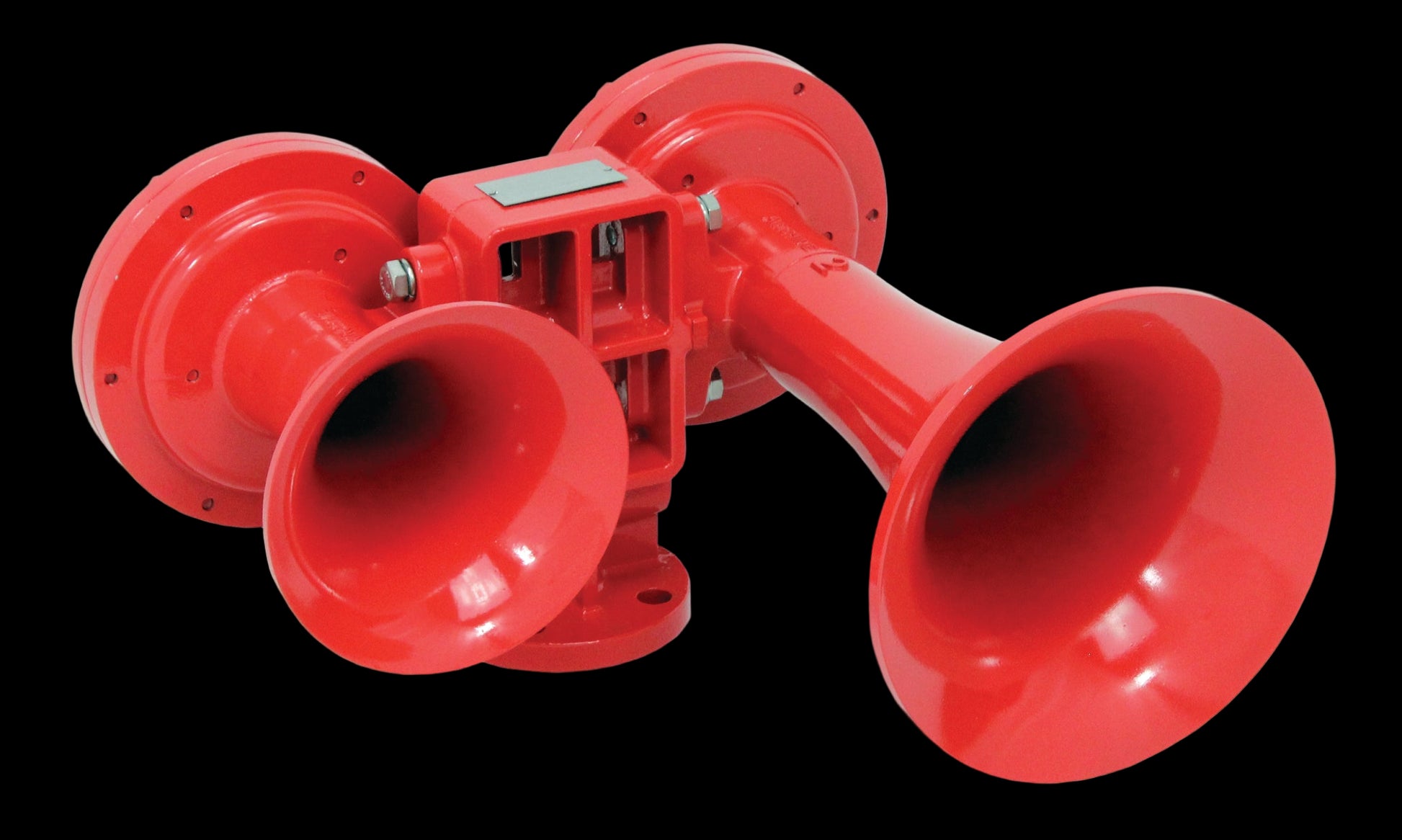

K-25 Industrial Air Horn

K-25 Industrial Air Horn

Regular price $1,280.00 USD
Regular price Sale price $1,280.00 USD
Sale Sold out
Finish

Kahlenberg Model "K" Industrial Horns are powerful signals backed by years of successful performance in coal yards, chemical plans, open pit mines and industrial facilities throughout the world. All of these horns and whistles are designed to operated indoors as well as in the most severe outdoor applications. They are simply constructed and extremely reliable resulting in a very low cost of use as compared to more complicated means of sound production.

  • Ideal for outdoor Industrial applications
  • Dual tone, 370 and 622 Hz fundamental frequencies, engineered to produce disconsonant chord which greatly enhances warning effectiveness
  • Horn is energy efficient with hermetically sealed diaphragm assembly which operates on a wide range of pressure without tuning or adjustment
  • Horn construction: High strength aluminum casting, stainless steel diaphragm discs and fasteners

Lead Time: 1 Week

Technical Specifications

Fundamental Frequency: 370 & 620 ± 20 Hz
S.P.L. @ 1 Meter: 141 dB(A)
Operating Medium: Air, Nitrogen, CO2, 1/2” NPT inlet
Control: Manual, Solenoid or Combination Valve
Air Consumption: 22.6 L/sec [48 SCFM] @ 7 bar [100psi]
Operating Temperature:-20°C to 80°C [-4°F to 176°F]
Operating Pressure: 3-10 bars [45-145 psi]
Finish: Epoxy Safety Red
Net Weight: 11.5 lbs., 5.25 kg.
Degree of Protection: IP54
Dimensions: 311 x 337 x 178 mm [12.25” x 13.25” x 7”]

Click Here for Technical PDF
