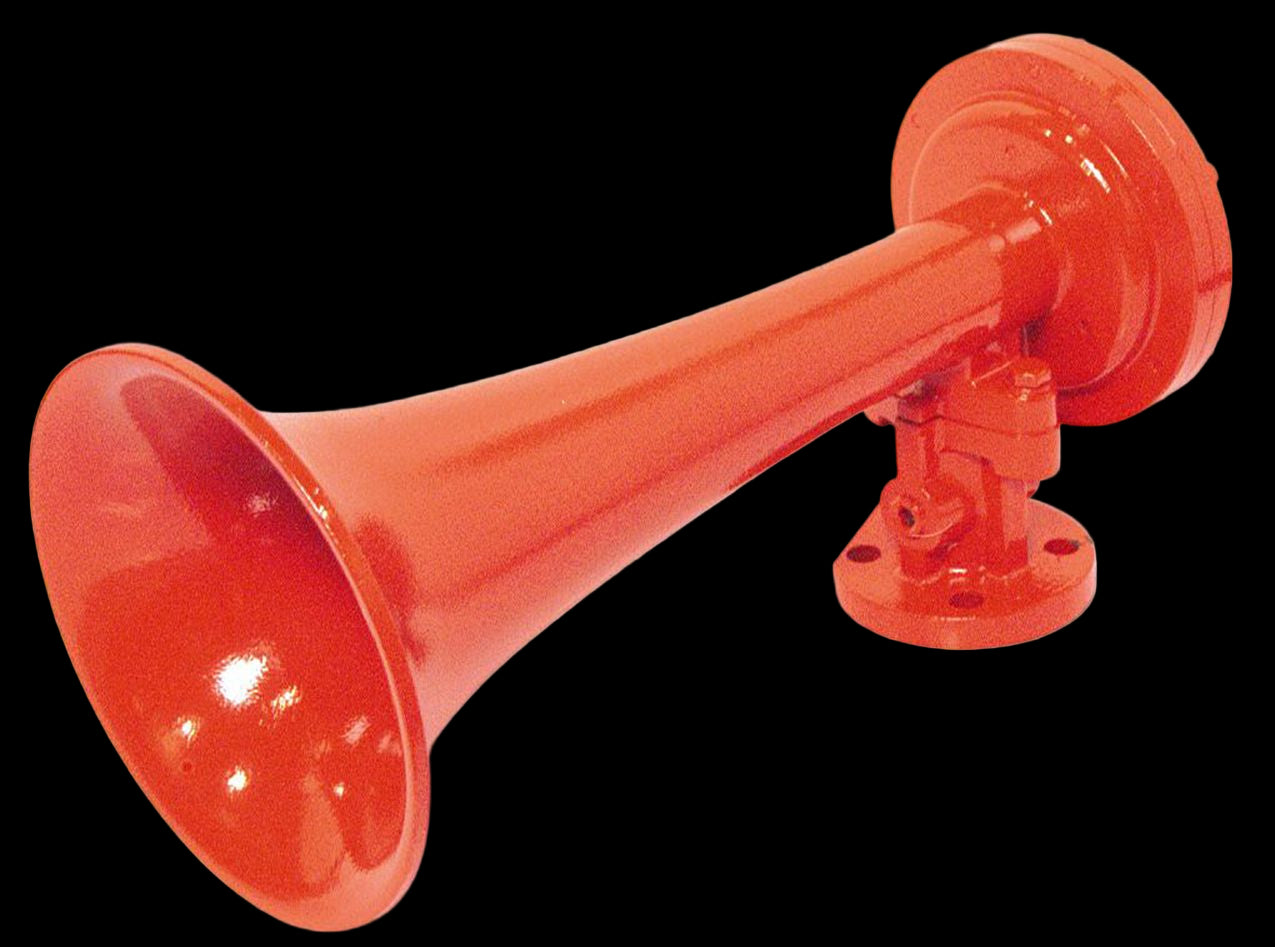

K-1 Industrial Air Horn

K-1 Industrial Air Horn

Regular price $856.00 USD
Regular price Sale price $856.00 USD
Sale Sold out
Finish

Kahlenberg Model "K" Industrial Horns are powerful signals backed by years of successful performance in coal yards, chemical plans, open pit mines and industrial facilities throughout the world. All of these horns and whistles are designed to operated indoors as well as in the most severe outdoor applications. They are simply constructed and extremely reliable resulting in a very low cost of use as compared to more complicated means of sound production.

  • Ideal for outdoor Industrial applications
  • Single tone, 311 Hz fundamental frequency, engineered to produce full harmonic contents up to 12 octaves which greatly enhance warning effectiveness
  • Horn is energy efficient with hermetically sealed diaphragm assembly which operates on a wide range of pressure without tuning or adjustment
  • Horn construction: High strength aluminum casting, stainless steel diaphragm discs and fasteners

Lead Time: 1 Week

Technical Specifications

Control: Manual, solenoid or combination valve
SPL (Loudness) on Total: 140 ± 1 dBA @ 1 meter
Operating Medium: Air, nitrogen, CO2, 1/2” NPT inlet
Air Consumption: 11 L/Sec [24 SCFM] @ 7 bar [100 PSIG]
Audibility: 3.0 km on still air
Fundamental Frequency: 311 Hz ± 10 Hz
Tone (Musical Note): Eb [E-flat]
Operating Pressure: 3 – 10 bar [50 – 150 PSI]
Operating Temperature: -40ºC to +85ºC [-40ºF to +185ºF]
Finish: Primed and painted red alkyd enamel
Degree of Protection: IP 54
Basic Dimension: 432x230x229mm

Click Here for Technical PDF
