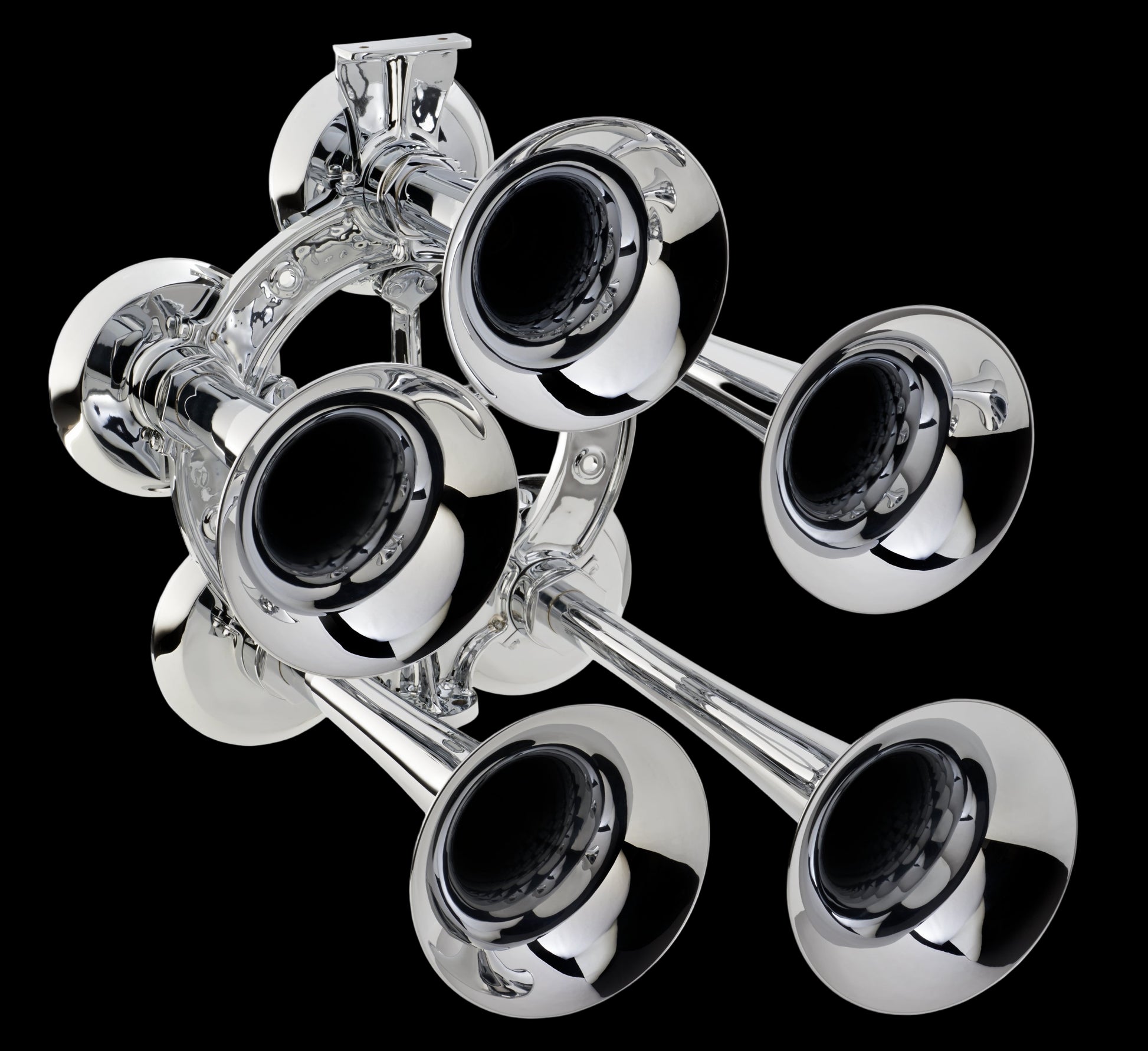

F-3 Chrome Chimetone Air Horn
F-3 Chrome Chimetone Air Horn
Couldn't load pickup availability
Kahlenberg F-3 Chimetone Air Horns all utilize more than one projector or “trumpet” in their design. These projectors each produce a different fundamental frequency which combine to produce powerful, distinctive, musical chords. To hear a Chimetone Air Horn is to realize that the sound of a vessel can be one of its most impressive aspects. The Model F-3 Air Horn is designed for the most discriminating yachtsman. It is made entirely of bronze and brass, and is triple plated for a deep chrome finish.
- For vessels less than 75 Meters in length
- Meets or exceeds IMO Requirements
- Low Air Consumption, operates on a wide range of air pressure
- Highly reliable, virtually no maintenance required
- All brass and bronze construction
Lead Time: As Quoted
Technical Specifications
Technical Specifications
Fundamental Frequency: 283,247,208,174 & 142 Hz
S.P.L. (1/3 Octave, 1 Meter): 136 dB
Air Consumption: 84 CFM @ 100psi, 39.6 I/s @ 7 bar
Air Pressure Required: 100 to 250 psi, 7 to 17 bar (Higher pressures with optional regulators)
Electrical Power Required: Any standard A.C. or D.C voltage
Material: Cast Bronze & Spun Brass
Net Weight: 114 lbs., 52 kg.
Finish: Kahlenberg Chrome Plate, TGIC Sky White Powdercoat, Other Finishes Available
Dimensions: 30” x 26.5” x 25.75” (762x673x654mm)
