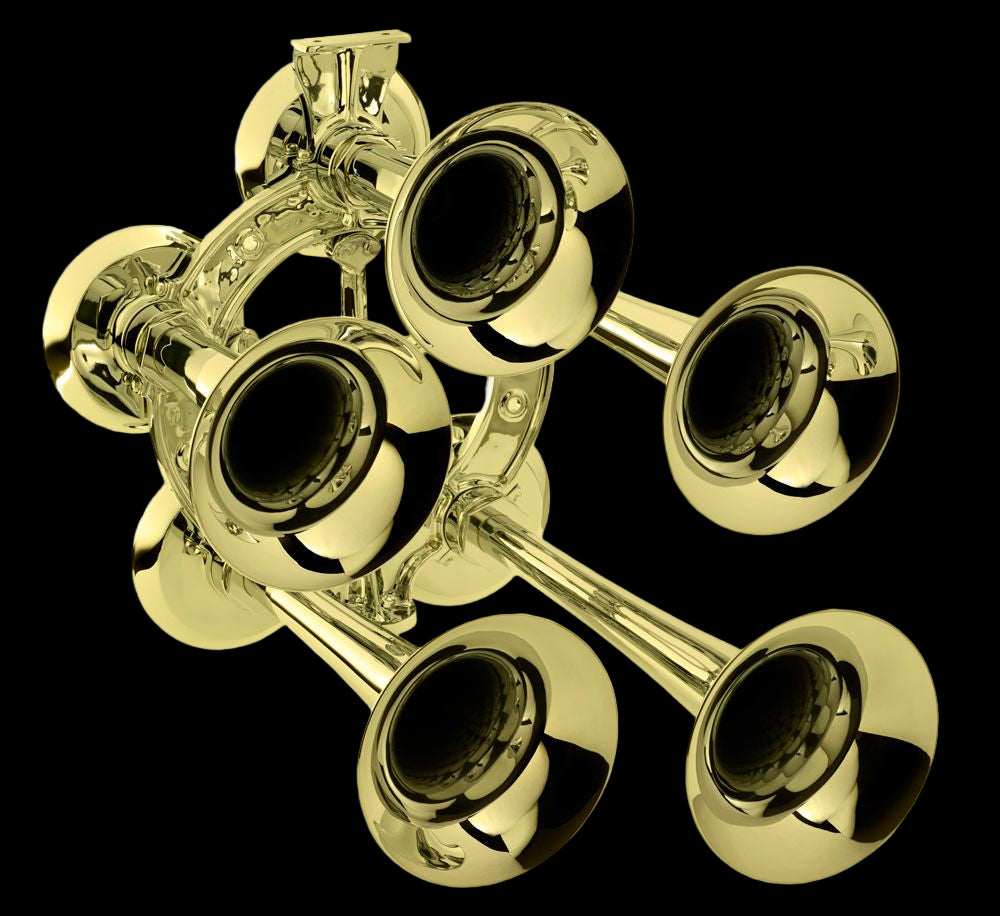

F-3 Arena Air Horn
F-3 Arena Air Horn
Couldn't load pickup availability
Originally designed for use on marine vessels up to 250 feet long, the Model F-3 Air Horn is an impressive unit. Providing a sound pressure level of over 142 dB @ 1 Meter, the F-3 combines five tones for optimum effect. A complete system can be designed for use with the F-3 Air Horn including compressor kits and controls.
- Highly reliable, no maintenance
- Low air consumption, operates on a wide range of air pressure
- Available as a uni-directional assembly only
- For use as a powerful scoring signal inside larger arenas
Lead Time: As Quoted
Technical Specifications
Technical Specifications
Fundamental Frequency: 283,247,208,174 & 142 Hz
S.P.L. (1/3 Octave, 1 Meter): 136 dB
Air Consumption: 84 CFM @ 100psi, 39.6 I/s @ 7 bar
Air Pressure Required: 100 to 250 psi, 7 to 17 bar (Higher pressures with optional regulators)
Electrical Power Required: Any standard A.C. or D.C voltage
Material: Cast Bronze & Spun Brass
Net Weight: 114 lbs., 52 kg.
Finish: Kahlenberg Chrome Plate, TGIC Sky White Powdercoat, Other Finishes Available
Dimensions: 30” x 26.5” x 25.75” (762x673x654mm)
