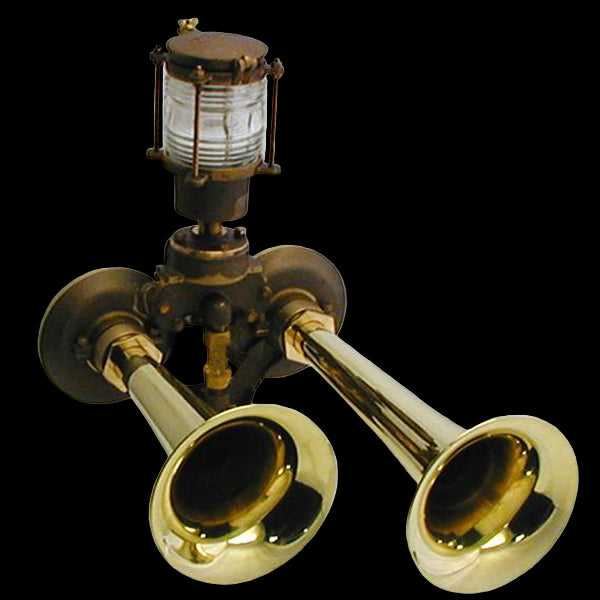

D-2CVL Air Horn
D-2CVL Air Horn
Couldn't load pickup availability
Designed for use on vessels up to 75 Meters in length, the Kahlenberg Model D-2CVL Air Horn is an extremely durable unit built for a lifetime of trouble-free service. The unique dual tone sound of the D-2CVL Air Horn has made it a favorite of commercial vessel operators around the world. This horn includes manual/electric combination valve, air strainer, and whistle light installed.
- For vessels less than 75 Meters in length
- Meets or exceeds IMO Requirements
- Low Air Consumption, operates on a wide range of air pressure
- Highly reliable, virtually no maintenance required
- All brass and bronze construction
Lead Time: As Quoted
Technical Specifications
Technical Specifications
Fundamental Frequency: 266 & 212 Hz
S.P.L. (1/3 Octave, 1 Meter): 132 dB
Air Consumption: 29 C.F.M. @ 100psi, 8 l/s @ 7 bar
Air Pressure Required: 100 to 250 psi, 7 to 17 bar (Higher pressures with optional regulators)
Electrical Power Required: Any Standard AC or DC Voltage
Material: Cast Bronze & Spun Brass
Net Weight: 44 lbs., 20 kg.
Finishes: None, or TGIC Sky White Powdercoat
Dimensions: 20.5” x 15.5” x 19.25” (524x394x489mm)
