D-2 Chrome Chimetone Air Horn
D-2 Chrome Chimetone Air Horn
Couldn't load pickup availability

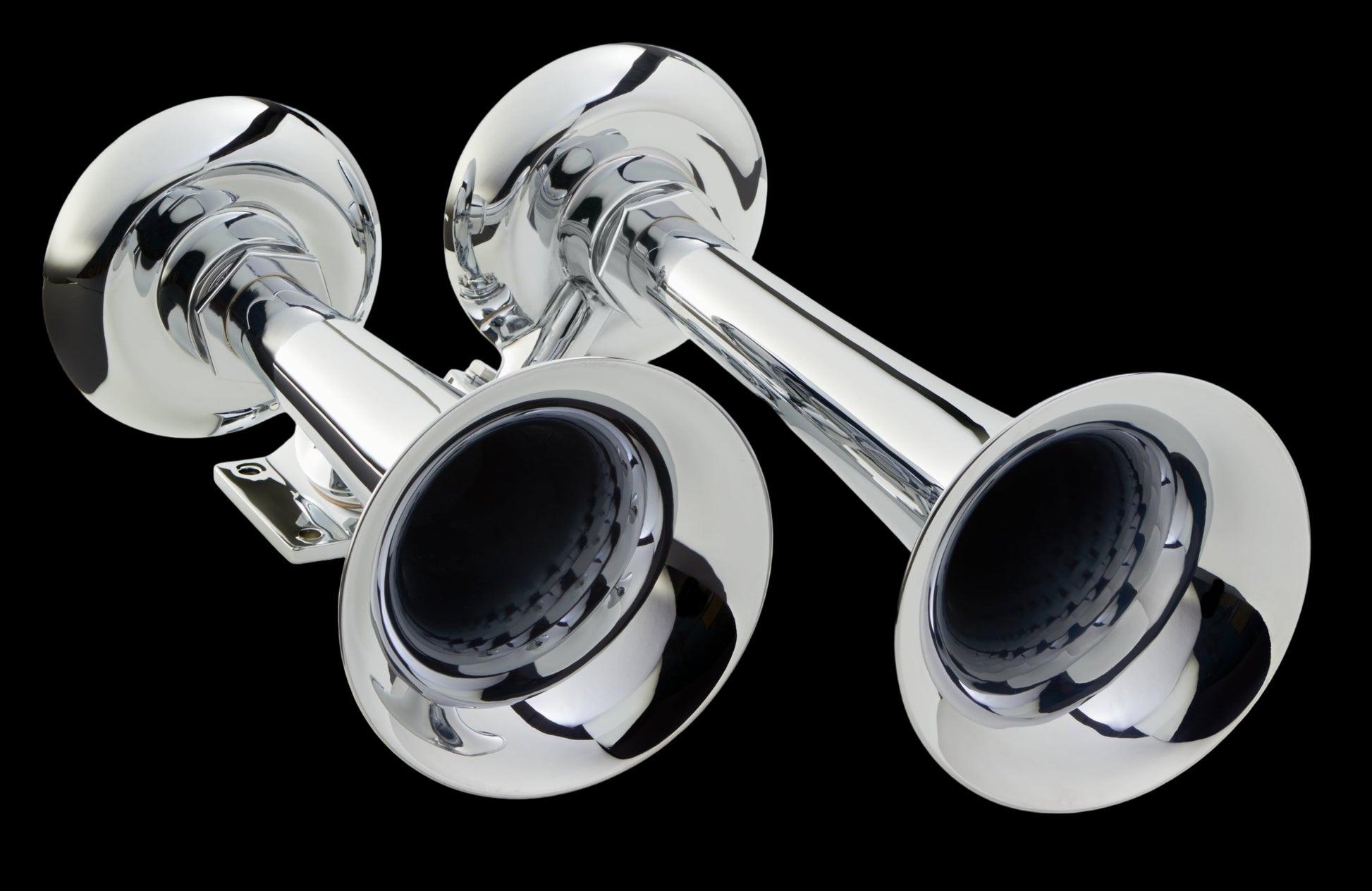

Kahlenberg Chimetone Air Horns all utilize more than one projector or “trumpet” in their design. These projectors each produce a different fundamental frequency which combine to produce powerful, distinctive, musical chords. To hear a Chimetone Air Horn is to realize that the sound of a vessel can be one of its most impressive aspects. The Model D-2 Air Horn is designed for the most discriminating yachtsman. It is made entirely of bronze and brass, and is plated with the highest quality duplex nickel chrome plate finish.
- For vessels less than 75 Meters in length
- Meets or exceeds IMO Requirements
- Low Air Consumption, operates on a wide range of air pressure
- Highly reliable, virtually no maintenance required
- All brass and bronze construction
Lead Time: As Quoted
Technical Specifications
Technical Specifications
Fundamental Frequency: 266 & 212 Hz
S.P.L. (1/3 Octave, 1 Meter): 132 dB
Air Consumption: 29 C.F.M. @ 100psi, 8 l/s @ 7 bar
Air Pressure Required: 100 to 250 psi, 7 to 17 bar (Higher pressures with optional regulators)
Electrical Power Required: Any Standard AC or DC Voltage
Material: Cast Bronze & Spun Brass
Net Weight: 33 lbs., 15 kg.
D-2CVL: 44 lbs., 20kg.
Finishes: Kahlenberg Chrome Plate, TGIC Sky White Powdercoat, Other Colors Available
Dimensions: 20.5” x 15.5” x 8.5” (524x394x217mm)
