D-2 282-2 Arena Air Horn

D-2 282-2 Arena Air Horn

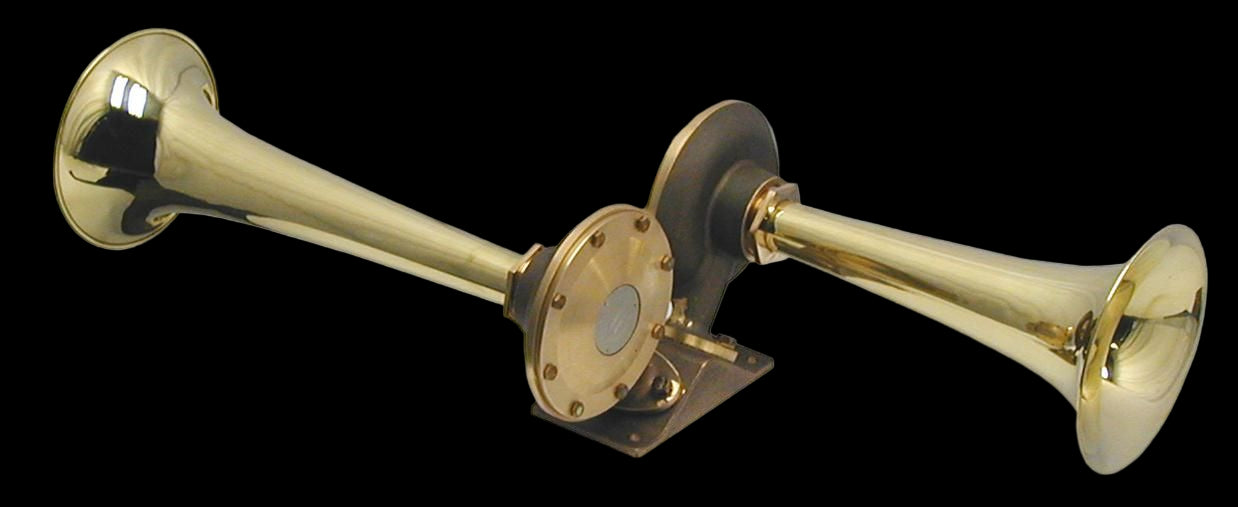

Designed for use as a scoring signal in smaller arenas and ice centers, the Model D-2 Fig. 282 Air Horn is an impressive unit. Providing a sound pressure level of over 138 dB @ 1 Meter, the D-2 combines two tones specifically recognizable as a scoring signal and far louder than truck horns. Configured as an bi-directional unit, sound can be evenly distributed throughout the facility eliminating problems with weak or excessive decibel levels in certain seating areas. A complete system can be designed for use with the D-2 Air Horn including compressor kits and controls.

  • Highly reliable, no maintenance
  • Low air consumption, operates on a wide range of air pressure
  • Easily converts to uni-directional or bi-directional variations
  • For use as a powerful scoring signal inside smaller arenas or ice centers

Lead Time: As Quoted

Technical Specifications

Fundamental Frequency: 174 & 212 Hz
S.P.L. : 138 dB (lin) @ 1 meter
Air Consumption: 44 CFM @ 150 p.s.i.
Air Pressure Required: 100 to 250 p.s.i.
Electrical Power Required: (Use with separate
solenoid valves, any voltage)
Material: Cast Bronze and Spun Brass
Net Weight: 33 lbs
Shipping Weight: 40 lbs.
Finish: None as standard, Optional White Powdercoat or Chrome Plate

Click Here for Technical PDF
