D-0A Air Horn

D-0A Air Horn

Regular price $829.00 USD
Regular price Sale price $829.00 USD
Sale Sold out
Finish

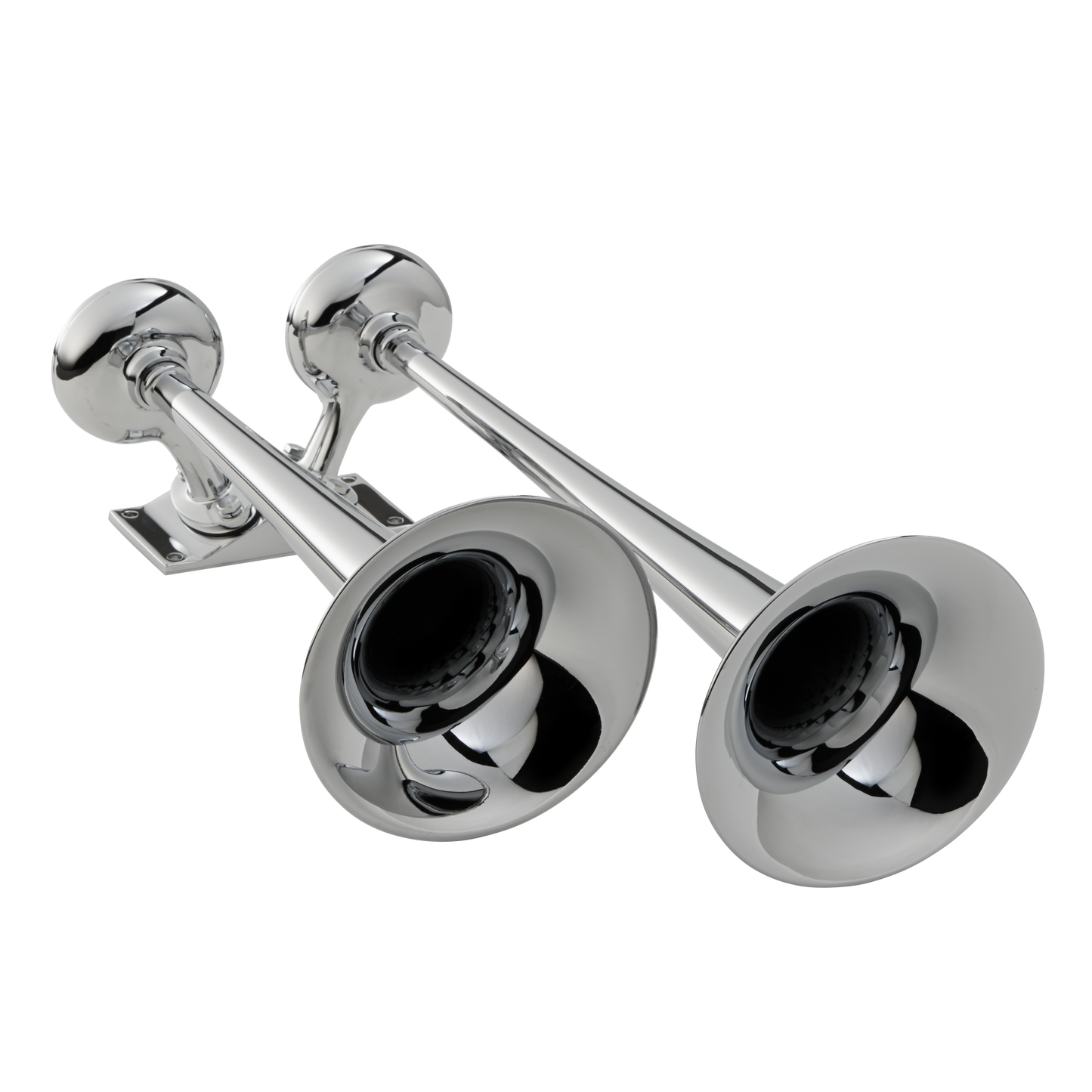

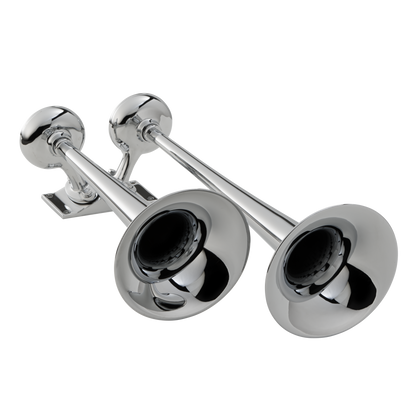

The Kahlenberg D-0A Marine Air Horn is IMO Certified for boats up to 65 feet (20 Meters) in length. As with all Kahlenberg Air Horns for pleasure craft, the D-0A has been developed to maximize audibility, with a richness of tone based on musical instrument design. Constructed entirely of bronze and brass it is built for a lifetime of service.

  • Output exceeds other horns of similar size
  • Made entirely of brass with bronze diaphragm
  • Low air consumption allows for use of a very small compressor/tank kit as compared to other air horns.
  • Easy Installation with optional P449 Series Compressor Kits, V-69-K Valve Kits

Lead Time: 3-4 Weeks

Technical Specifications

Fundamental Frequency: 322 & 254 Hz
S.P.L. (1/3 Octave, 1 Meter): 133 dB(A) 122.5 dB
Air Consumption: 17.6 C.F.M., 8.3 l/s
Air Pressure Required: 50 to 200psi, 3.5 to 14 bar
Electrical Power Required: 12 or 24 Volt DC (Compressor)
Material: Bronze & Cast Brass
Net Weight: 9 lbs., 4 kg.

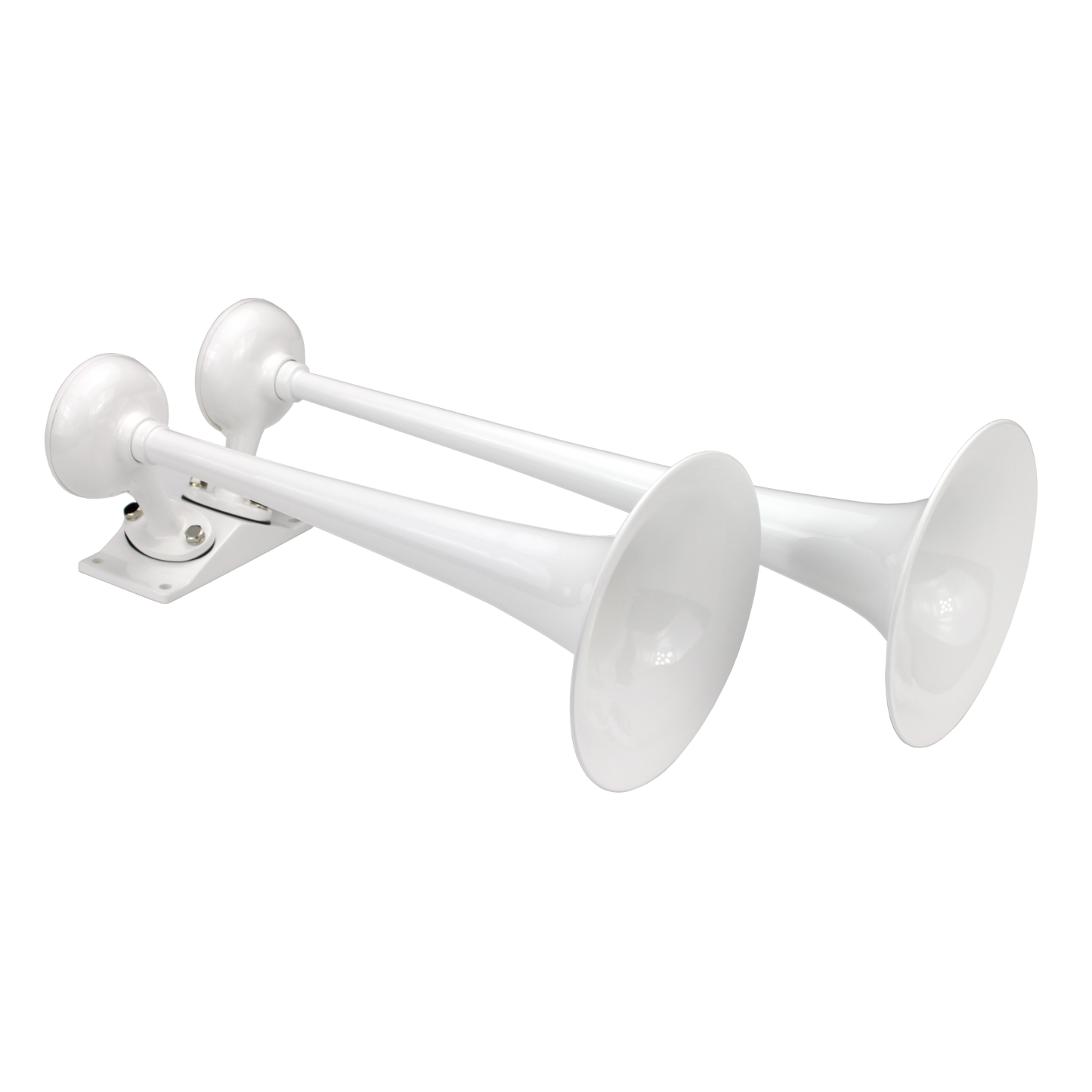

Finishes: Kahlenberg Chrome Plate, TGIC Sky White Powdercoat, Other Finishes Available
Dimensions: 21.6” x 11.6” x 7.3” (549x294x185mm)

Click Here for Technical PDF
