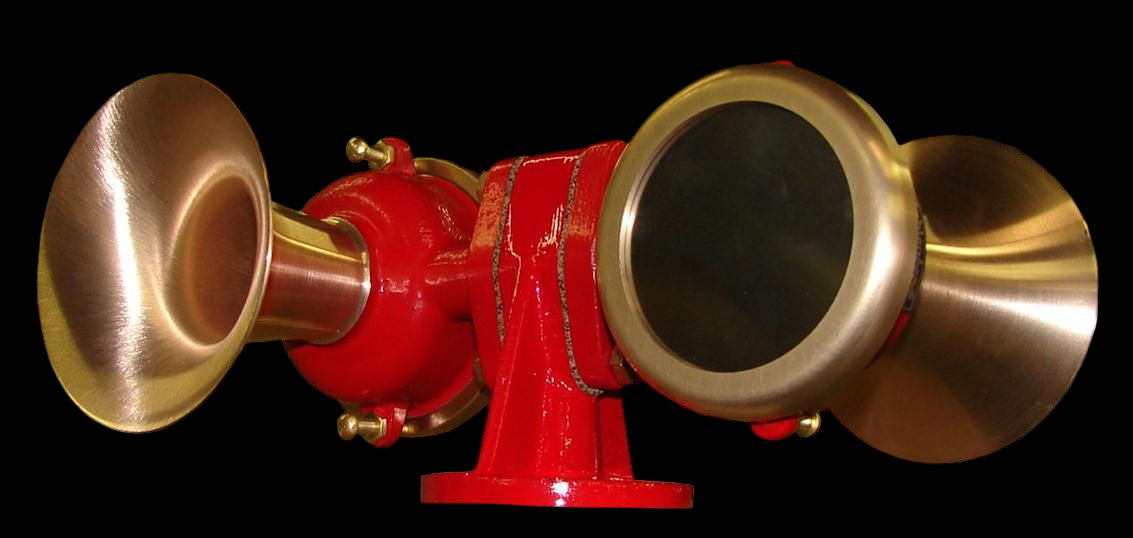

CA2-1R2 Industrial Air Horn
CA2-1R2 Industrial Air Horn
Couldn't load pickup availability
This high quality, resilient emergency air horn is perfect for general industrial signaling applications, engine room, and fire alarm signals. It is built for use in hazardous and corrosive environments, and is bi-directional for improved sound coverage.
- Efficient design with low air consumption
- Bi-Directional design for improved coverage
- Durable, solid cast bronze bell with stainless steel diaphragm disc
- Ideal for use in hazardous and corrosive environments
- For use with solenoid, manual, or combination valve sold separately
Lead Time: 1 Week
Technical Specifications
Technical Specifications
Fundamental Frequency: 745 ± 20 Hz
S.P.L. (dB(A) @ 1 Meter): 132 dB
Operating Medium: Air, Nitrogen, CO2, 1/2” NPT Inlet
Control: Manual, Solenoid or Combination Valve
Air Consumption: 28 C.F.M. @ 100psi, 14 l/s @ 7 bar
Air Pressure Required: 50 to 150 psi, 3 to 10 bar
Operating Temperature: -20°C to 80°C [-4°F to 176°F]
Finish: Power coated Red
Net Weight: 8 lbs., 3.6 kg.
Degree of Protection: IP54
Dimensions: 10” x 8” x 5” (257x192x121mm)
