BI-0A-SC Golf Course Warning Horn

BI-0A-SC Golf Course Warning Horn

Finish

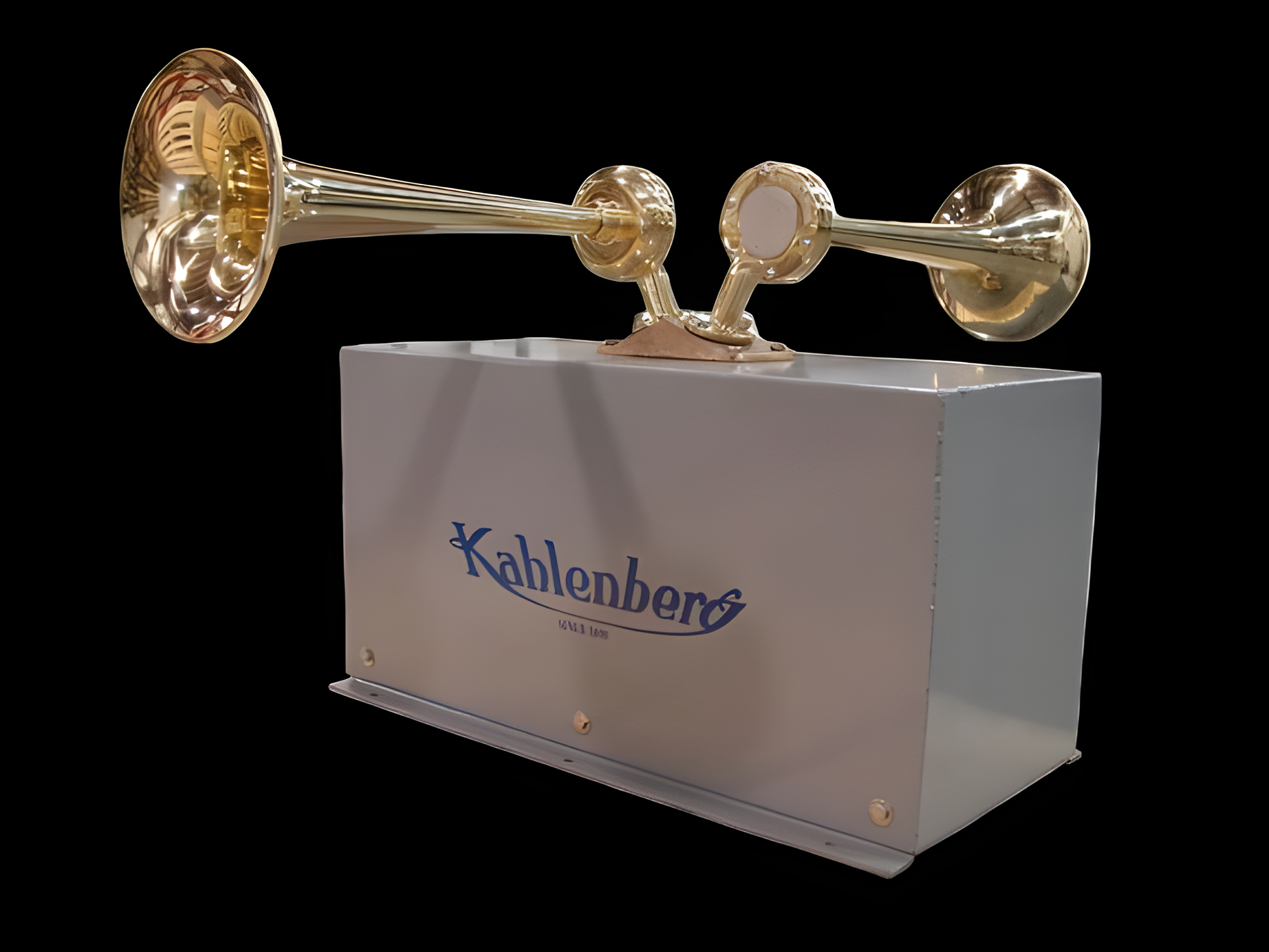

When used as a Golf Course Warning Horn to warn of inclement weather, the Kahlenberg Model BI-0A-SC Air Horn is an extremely durable, bi-directional assembly built for a lifetime of trouble-free service. The BI-0A-SC Self-Contained Air Horn includes an air compressor housed in a thermostatically controlled, heated and weatherproof enclosure, eliminating the need for external air compressors or associated piping.   This solution provides a weather proof signal audible for distances up to 1 mile (.5 mile radius), much greater than the standard "hand held" air horn made by others. Kahlenberg also offers wireless activation of this product with KI-Wireless Kits. Protect yourself and your customers with the BI-0A-SC Golf Warning System.

  • Highly reliable, no maintenance
  • All bronze and brass horn construction for corrosion resistance
  • Bi-Directional design for improved coverage
  • Ideal for use outdoors with built in direct driven air compressor
  • Thermostatically controlled, heated and weatherproof
  • Available in 120 VAC or 240 VAC versions

Lead Time: As Quoted

Technical Specifications

Fundamental Frequency: 322 Hz
SPL @ 1 Meter (dBA): 133 dB
Audibility: 0.5 Miles, 1 km (Radius)
Power Consumption: 13.5 Amps @ 120 VAC
Operating Temperature: -30°C to 75°C [-22°F to 167°F]
Control and Heater: 120 VAC or 240 VAC as specified
Net Weight: 39 kg [85 lbs]
Finish: Bronze and Brass Horns, Aluminum Enclosure, Grey Polysiloxane Epoxy Finish
Dimensions: 795x566x481mm (23”x11.5”x19”)

Click Here for Technical PDF
