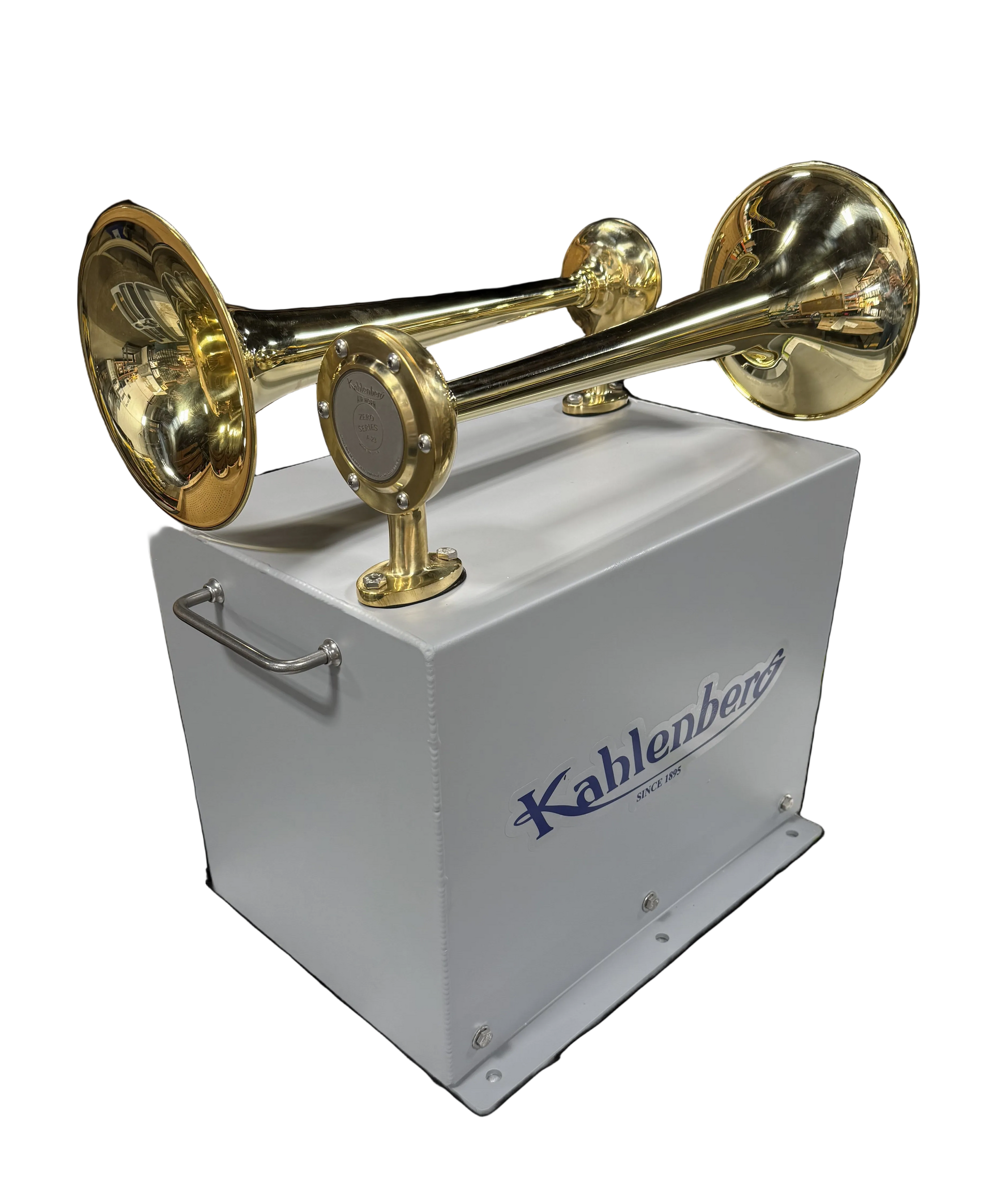

BI-0A-SC2 Industrial Air Horn

BI-0A-SC2 Industrial Air Horn

Finish

Designed for industrial use, the Kahlenberg Model BI-0A-SC2 Air Horn is an extremely durable unit built for a lifetime of trouble-free service. The BI-0A-SC2 Self-Contained Air Horn includes an air compressor housed in a thermostatically controlled, heated and weatherproof enclosure, eliminating the need for external air compressors or associated piping.

  • Highly reliable, no maintenance
  • All bronze and brass horn construction for corrosion resistance
  • Bi-Directional design for improved coverage
  • Ideal for use outdoors with built in direct driven air compressor
  • Thermostatically controlled, heated and weatherproof
  • Available in 120 VAC or 240 Volt AC versions

Lead Time: As Quoted

Technical Specifications

Fundamental Frequency: 322 Hz
SPL @ 1 Meter (dBA): 128 dB
Audibility: 0.5 Miles, 1 km (Radius)
Power Consumption: 6.3 Amps @ 120 VAC
Operating Temperature: -40°C to 60°C [-40°F to 140°F]
Control and Heater: 120 VAC or 240 VAC as specified
Net Weight: 21 kg [46 lbs]
Finish: Bronze and Brass Horns, Aluminum Enclosure, Grey Polysiloxane Epoxy Finish
Dimensions: 508x330x432mm (20”x13”x17”)

Click Here for Technical PDF
